Refrigeration Digital Manifold Gauge Meter HVAC Vacuum Pressure Temp Tester

Product Description

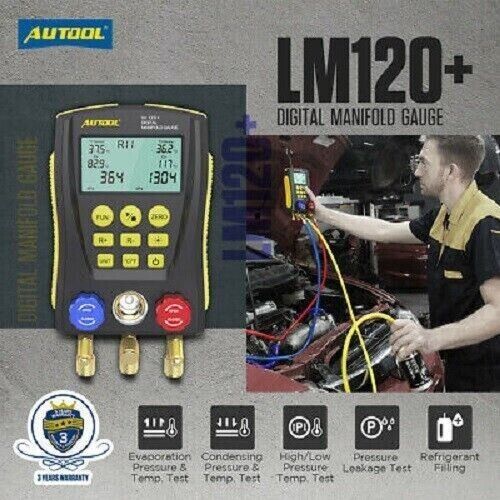

AUTOOL LM120+ Digital Manifold Gauge is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners, fridge and cold storage. The instrument has double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.

Evaporation Pressure & Temperature Test

The maximum pressure when the refrigerant changes from liquid to gas. The lowest temperature when the liquid becomes gaseous. (The lower the pressure and temperature of the evaporation are, the more efficient the refrigeration cycle and the greater the refrigeration capacity will do.)

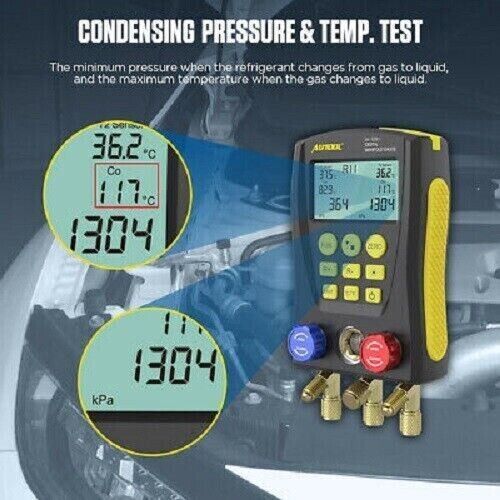

Condensing Pressure & Temperature Test

The minimum pressure when the refrigerant changes from gas to liquid, and the maximum temperature when the gas changes to liquid. (The lower the pressure and temp of condensation are, the higher the efficiency of the refrigeration cycle and the greater the refrigerant capacity will do.)

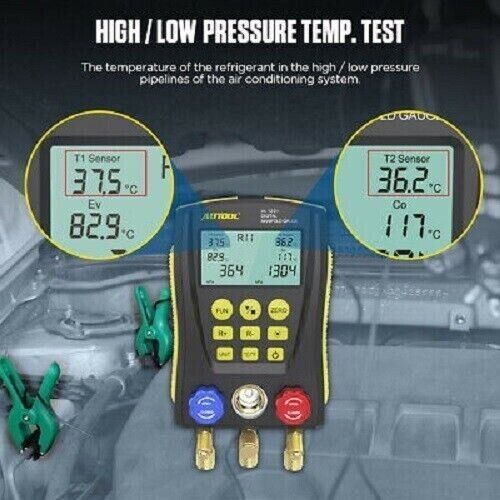

High / Low-Pressure Temperature Test

The temperature of the refrigerant in the high / low-pressure pipelines of the air conditioning system.

Pressure Leakage Test

Calculate the pressure difference between the initial test pressure and the second test pressure to determine if the refrigerant is leaking.

The instrument can measure double pressure at the same time, as well as dual temperature measurement, with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.

Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument’s durability and versatility.

Product specifications:

Pressure test: gauge pressure

Pressure test unit: Kpa; Mpa; bar; inHg; PSI.

Pressure test range: 0 Kpa – 6000 Kpa

Pressure test resolution: 1 Kpa

Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt

Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)

Vacuum test: relative vacuum

Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.

Vacuum test range: -101 Kpa – 0 Kpa

Vacuum test resolution: 1 Kpa

Temperature test unit: °C (Celsius), °F (Fahrenheit)

Temperature test range: -40°C–150°C (-40°F–302°F)

Temperature test resolution:

0.1°C (-40°C–99.9°C), 1°C (100°C–150°C)

0.1°F (-40°F–99.9°F), 1°F (100°F–302°F)

Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt

Built-in 89 kinds of refrigerant NIST: According to American NIST standard

Power Supply: 4 X 1.5V (SIZE.AA / LR6) Battery not include

Dimensions: 170*110*50mm

Weight: 1900g

Packing list:

1x Refrigerantion Digital Manifold Gauge
1x User Manual (in English)
2x Temperature Clip
3x Test Pipe
1x Suitcase
Battery not include

Specification: Refrigeration Digital Manifold Gauge Meter HVAC Vacuum Pressure Temp Tester

Features	Digital
MPN	Does Not Apply
Item Width	See item specific
Item Length	See item specific
Refrigerant	See item specific
Gauge Purpose	Pressure, Vacuum
Item Weight	See item specific
Gauge Fill	See item specific
Brand	Unbranded
color	Black
Model	Manifold, Gauge & Hose Set
Items Included	See item specific
