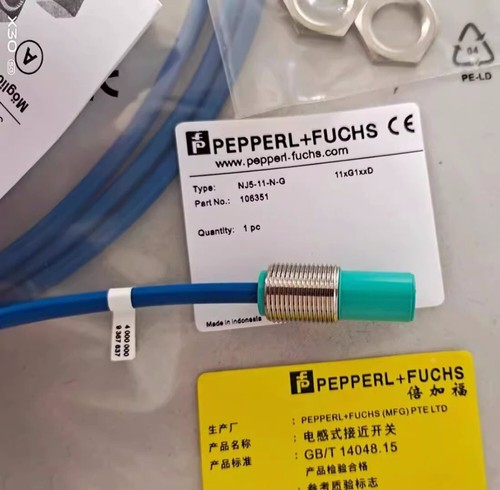

Pepperl+Fuchs NJ5-11-N-G Proximity Sensor
$66.88
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Pepperl+Fuchs NJ5-11-N-G Proximity Sensor is an inductive sensor, featuring a 5 mm sensing range. It operates at 8.2 V DC with a 3 mA current consumption. Output is NPN normally closed (NC). The sensor offers reliable object detection in industrial automation applications.
The Pepperl+Fuchs NJ5-11-N-G Proximity Sensor is a high-performance inductive sensor designed for reliable and precise object detection in a variety of industrial automation applications. This sensor is identified by its model number NJ5-11-N-G and offers a robust solution for proximity sensing needs.
Specifications:
- Product Title: Pepperl+Fuchs NJ5-11-N-G Proximity Sensor
- Model: NJ5-11-N-G
- Sensing Range: 5 mm
- Operating Voltage: 8.2 V DC
- Current Consumption: 3 mA
- Output: NPN normally closed (NC)
- Installation: Non-flush
- Output Polarity: DC
- Assured operating distance: 0 … 4.05 mm
- Reduction factor rAl: 0.43
- Reduction factor rCu: 0.36
- Reduction factor r304: 0.78
- Nominal ratings:
- Switching frequency: 0 … 1500 Hz
- Hysteresis: 3 … 15 %
- Reverse polarity protection: reverse polarity protected
- Short-circuit protection: yes, pulsing
- Voltage drop: ≤ 3 V
- Operating current: 3 mA
- Off-state current: 0 … 0.5 mA typical 0.1 μA at 25 V
- No-load supply current: ≤ 10 mA
- Indication of the switching state: Single LED, yellow
- Ambient temperature: -25 … 70 °C (-13 … 158 °F)
- Connection type: Connector M12 x 1, 4-pin
- Core cross-section: 0.14 mm2
- Housing material: Brass, nickel-plated
- Sensing face: PBT
- Degree of protection: IP67
- Compliance with standards and directives:
- Standard conformity: EN 60947-5-2:2007
- Approvals: cULus
Key Features:
- Precise 5 mm sensing range.
- NPN normally closed output.
- Durable brass, nickel-plated housing.
- IP67 protection rating for harsh environments.
- LED Indication for switching state.
Models Suitability:
The NJ5-11-N-G proximity sensor is suitable for various applications, including:
- Position detection.
- Object counting.
- Speed monitoring.
- Robotics.
- Automation systems.
