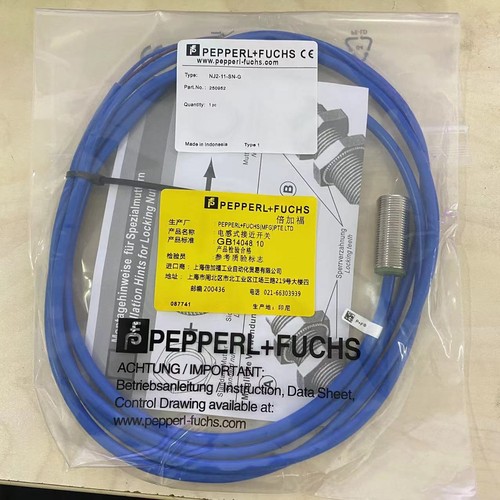

Pepperl Fuchs NJ2-11-SN-G Proximity Sensor
$78.32
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Pepperl Fuchs NJ2-11-SN-G Proximity Sensor offers reliable non-contact detection. Featuring a 2mm sensing range, PNP output, and flush mountable design, it’s ideal for industrial automation. Operates on 10-30V DC with a NO configuration. Robust and precise for demanding applications.
The Pepperl Fuchs NJ2-11-SN-G Proximity Sensor is a high-performance inductive sensor designed for precise and reliable object detection in industrial automation applications. This sensor utilizes non-contact technology, ensuring longevity and reducing wear and tear, which is crucial in demanding environments.
Key Features:
- Sensing Range: 2 mm
- Output: PNP
- Installation: Flush mountable
- Operating Voltage: 10-30V DC
- Output Function: Normally Open (NO)
- Connection Type: Cable
- Housing Material: Brass, nickel-plated
- Degree of Protection: IP67
Full Specifications:
- Rated Operating Distance (Sn): 2 mm
- Installation Conditions: Flush
- Output Polarity: DC
- Assured Operating Distance (Sa): 0 – 1.62 mm
- Reduction Factor rAl: 0.4
- Reduction Factor rCu: 0.3
- Reduction Factor r304: 0.7
- Nominal Voltage (Un): 24 V DC
- Operating Voltage (UB): 10 – 30 V DC
- Switching Frequency (f): 2000 Hz
- Hysteresis (H): Typically 5%
- Reverse Polarity Protection: Yes
- Short-Circuit Protection: Yes, pulsed
- Voltage Drop (Ud): ≤ 2 V
- Operating Current (IL): 0 – 100 mA
- Off-State Current (Ir): ≤ 10 μA
- No-Load Supply Current (Io): ≤ 15 mA
- Indication of the Switching State: LED, yellow
- Ambient Temperature: -25 … 70 °C (-13 … 158 °F)
- Connection Type: Cable, PVC
- Core Cross-Section: 0.14 mm²
- Housing Material: Brass, nickel-plated
- Sensing Face: PBT
- Degree of Protection: IP67
- Compliance: CE, UL, CCC
- Approvals: cULus Listed, CCC approval
Model Suitability:
The NJ2-11-SN-G is ideally suited for applications requiring precise detection in automated machinery, material handling systems, and assembly lines. Its robust construction and high degree of protection make it suitable for harsh industrial environments, providing reliable performance even in the presence of dust, moisture, and vibrations. Common applications include:
- Position detection
- Object counting
- Speed monitoring
- Robotics
- Conveyor systems
