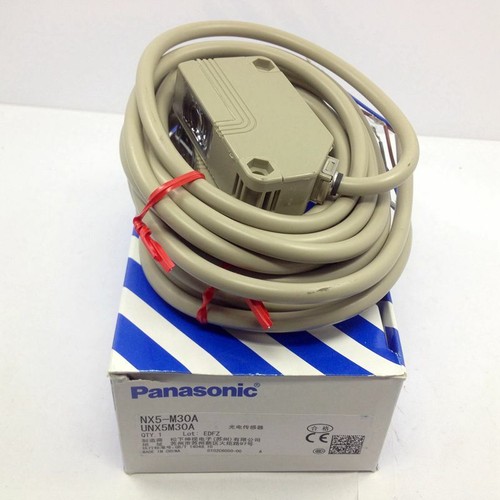

Panasonic NX5-M30A Photoelectric Switch
$104.72
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Panasonic NX5-M30A Photoelectric Switch is a reliable sensor with a compact design. Featuring a diffuse reflective sensing method, it offers a sensing distance of 30mm. It operates on a 12-24V DC power supply and includes both NPN and PNP output types, making it suitable for various automation applications.
The Panasonic NX5-M30A Photoelectric Switch is a highly versatile and reliable sensor designed for a wide range of automation applications. This model, the NX5-M30A, employs a diffuse reflective sensing method, allowing it to detect objects without the need for a separate reflector. Its compact design ensures easy integration into existing systems, even where space is limited.
Key Specifications:
- Product Title: Panasonic NX5-M30A Photoelectric Switch
- Model: NX5-M30A
- Sensing Method: Diffuse Reflective
- Sensing Distance: 30mm
- Supply Voltage: 12-24V DC
- Output Type: NPN and PNP
- Response Time: ≤ 1ms
- Light Source: Infrared LED
- Protection Circuit: Reverse polarity protection, surge suppression
- Housing Material: ABS resin
- Operating Temperature: -25°C to +55°C
- Connection Method: Cable (2m standard)
- Degree of Protection: IP67
Key Features:
- Compact Design: Space-saving design for easy installation.
- Diffuse Reflective Sensing: Simplifies setup and reduces the need for additional components.
- Dual Output (NPN/PNP): Provides flexibility in wiring and compatibility with different control systems.
- High Reliability: Robust construction and protection circuits ensure stable performance in demanding environments.
- Easy Installation: Standard cable connection and mounting options facilitate quick and easy setup.
Models Suitability:
The Panasonic NX5-M30A Photoelectric Switch is ideally suited for use in:
- Automated machinery: Object detection and positioning in production lines.
- Packaging equipment: Ensuring correct product placement and counting.
- Material handling systems: Detecting the presence of items on conveyors.
- Robotics: Providing feedback on object location for robotic arms.
- Door and gate control: Detecting obstructions for safety purposes.
Its combination of performance, reliability, and ease of use makes the Panasonic NX5-M30A a valuable component in a wide range of automation applications.
