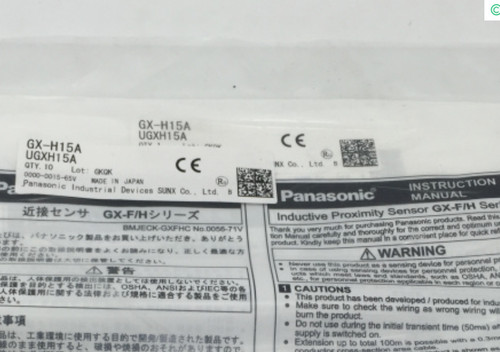

Panasonic GX-H15A Proximity Sensor
$44.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Panasonic GX-H15A Proximity Sensor is a compact and reliable inductive sensor. Key specs: M8 size, 1.5mm sensing distance, NPN output, pre-wired with a 2m cable, and operates on 12-24V DC. Ideal for precise object detection in automated machinery, robotics, and material handling systems.
The Panasonic GX-H15A Proximity Sensor is a high-performance inductive proximity sensor designed for precise and reliable object detection in a wide range of industrial automation applications. As part of the GX series, this sensor offers exceptional durability and sensitivity, ensuring consistent performance even in harsh environments.
Specifications:
- Model: GX-H15A
- Type: Inductive Proximity Sensor
- Size: M8
- Sensing Distance: 1.5mm ±10%
- Output Type: NPN open collector
- Supply Voltage: 12-24V DC ±10%
- Current Consumption: 15mA max.
- Response Frequency: 1 kHz
- Protection Circuit: Reverse polarity protection, surge suppression
- Indicator: Red LED
- Connection Type: Pre-wired with 2m cable
- Housing Material: Brass, nickel-plated
- Operating Temperature: -25°C to +70°C
- Protection Rating: IP67 (IEC)
- Standard Detection Object: Iron 8 × 8 × 1 mm
Key Features:
- Compact Size: M8 housing allows for easy integration into tight spaces.
- High Sensing Accuracy: 1.5mm sensing distance with minimal variation.
- Durable Construction: Nickel-plated brass housing provides excellent resistance to corrosion and physical damage.
- Reliable Performance: Built-in protection against reverse polarity and surges ensures stable operation.
- Easy Installation: Pre-wired 2m cable simplifies the connection process.
- Visual Indication: Red LED indicator confirms sensor operation.
Model Suitability:
The GX-H15A is suitable for various applications including:
- Automated Machinery: Ideal for position detection and control in automated assembly lines.
- Robotics: Precise object detection for robotic arms and end-effectors.
- Material Handling Systems: Reliable detection of parts and materials on conveyors.
- Packaging Equipment: Accurate detection of packaging materials and products.
- General Industrial Automation: Suitable for any application requiring non-contact object detection.
