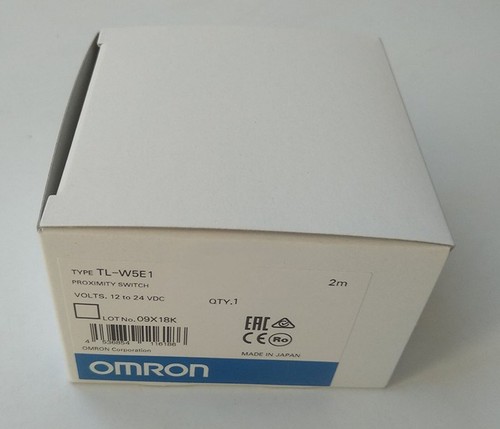

Omron TL-W5E1 Proximity Switch
$60.72
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Omron TL-W5E1 Proximity Switch (Model: TL-W5E1) offers reliable non-contact detection. Key specs: sensing distance 5mm, NPN output, pre-wired cable, and durable construction. Ideal for position detection, presence sensing, and automation applications. Enhance your system’s efficiency with this switch.
The Omron TL-W5E1 Proximity Switch, Model TL-W5E1, is a robust and reliable solution for non-contact object detection in a variety of industrial automation applications. This inductive proximity sensor is designed for high performance and durability, ensuring accurate and consistent sensing in demanding environments.
Key Features:
- Sensing Distance: 5mm ±10%
- Output Type: NPN normally open (NO)
- Power Supply Voltage: 12 to 24 VDC
- Current Consumption: 10mA max.
- Response Frequency: 800 Hz
- Protection Circuits: Reverse polarity protection, surge suppression
- Housing Material: Nickel-plated brass
- Cable Length: 2 meters, pre-wired
- Operating Temperature: -25°C to +70°C
- Degree of Protection: IP67 (Dust-tight and waterproof)
- Indicator: Red LED indicates output status
Specifications:
- Model Number: TL-W5E1
- Hysteresis: 10% of sensing distance
- Repeat Accuracy: 0.1mm
- Output Current: 200mA max.
- Insulation Resistance: 50 MΩ min. (at 500 VDC)
- Dielectric Strength: 1,000 VAC for 1 minute
- Vibration Resistance: 10 to 55 Hz, 1.5mm double amplitude
- Shock Resistance: 1,000 m/s²
Model Suitability:
The Omron TL-W5E1 is suitable for a wide range of applications, including:
- Position detection in automated machinery
- Presence sensing on conveyor systems
- Object counting in packaging lines
- Robotics
- Material handling equipment
Its robust construction and reliable performance make it an excellent choice for industrial environments requiring precise and dependable proximity sensing.
