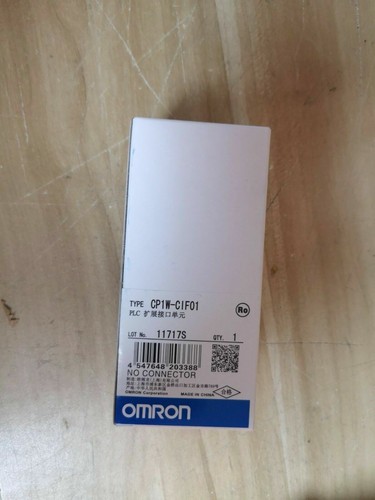

Omron CP1W-CIF01 PLC Module

The Omron CP1W-CIF01 PLC Module is a communication interface module designed to expand the connectivity options of Omron’s CP1L and CP1H series Programmable Logic Controllers (PLCs). This module provides an RS-232C communication port, enabling the PLC to interface with a wide range of serial devices such as HMIs, barcode readers, printers, and other PLCs.

Key Specifications:

• Product Title: Omron CP1W-CIF01 PLC Module
• Model: CP1W-CIF01
• Communication Interface: RS-232C
• Maximum Baud Rate: 115200 bps
• Data Length: 7 or 8 bits
• Parity Check: None, Even, Odd
• Stop Bit: 1 or 2 bits
• Flow Control: None, RTS/CTS, Xon/Xoff
• Connector Type: D-sub 9-pin male
• Isolation: Non-isolated
• Power Supply: Supplied from the PLC CPU unit
• Current Consumption: 50 mA max. at 5 VDC
• Operating Temperature: 0 to 55°C
• Storage Temperature: -20 to 75°C
• Operating Humidity: 35 to 85% RH (non-condensing)
• Dimensions: (H) 30 mm x (W) 31 mm x (D) 65 mm
• Weight: Approximately 30 g

Key Features:

• RS-232C Communication: Facilitates serial communication with various external devices.
• High-Speed Data Transfer: Supports baud rates up to 115200 bps for efficient data exchange.
• Flexible Communication Settings: Configurable data length, parity check, and stop bit settings to match different device requirements.
• Flow Control Options: Supports RTS/CTS and Xon/Xoff flow control methods to prevent data overflow.
• Compact Design: Small form factor allows for easy installation in control panels with limited space.
• Easy Integration: Seamlessly integrates with CP1L and CP1H series PLCs.

Model Suitability:

• Compatible with Omron CP1L series CPUs
• Compatible with Omron CP1H series CPUs

The CP1W-CIF01 module enhances the connectivity of Omron PLCs, making them suitable for a wide array of industrial automation applications requiring serial communication. Its robust design and versatile features ensure reliable performance in demanding environments.
