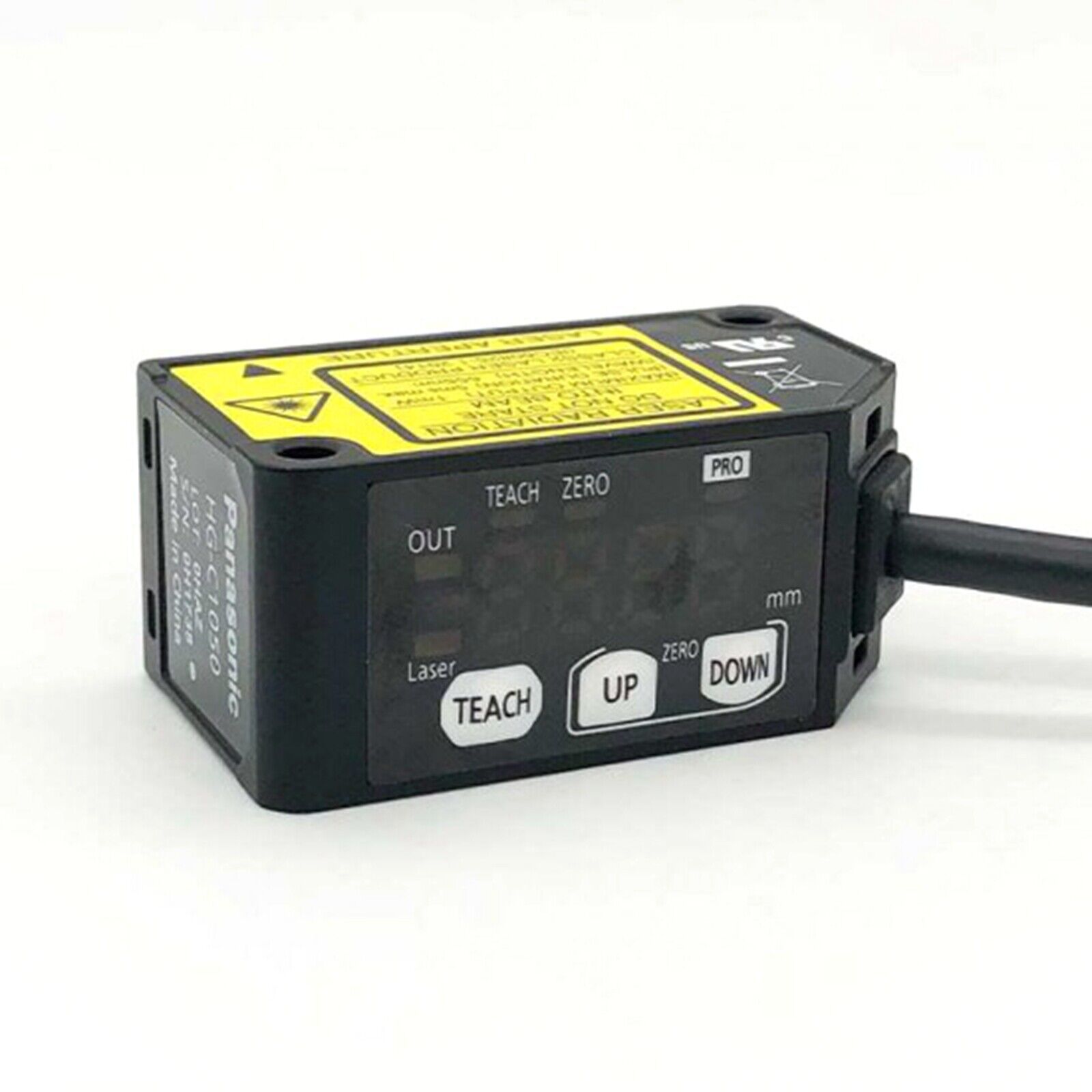

Panasonic HG-C1050 Laser Displacement Sensor

Panasonic HG-C1050 Laser Displacement Sensor

Specifications:

Measurement range: 100 mm
Resolution: 0.01 mm
Accuracy: ±0.05 mm
Laser wavelength: 650 nm
Laser class: Class 2
Sampling rate: 1 kHz
Output: Analog (0-10 V) or digital (RS-232C)
Dimensions: 60 x 60 x 25 mm
Weight: 100 g

High accuracy and resolution
Non-contact measurement
Compact and lightweight
Analog and digital outputs
Suitable for a wide range of applications

Model Suitability:

HG-C1050: Standard model
HG-C1050-10: Model with extended measurement range (200 mm)
* HG-C1050-20: Model with high accuracy (±0.02 mm)

Full Description:

The NEW PANASONIC HG-C1050 Laser Displacement Sensor is a high-performance, non-contact measurement device that utilizes laser technology to accurately measure the distance between the sensor and a target object. With a measurement range of 100 mm, resolution of 0.01 mm, and accuracy of ±0.05 mm, the HG-C1050 provides precise and reliable measurements.

The sensor’s compact and lightweight design makes it easy to integrate into various applications, including industrial automation, robotics, and quality control. Its analog and digital outputs allow for seamless connectivity with a wide range of devices.

The HG-C1050 is available in three models to meet specific application requirements: the standard HG-C1050, the HG-C1050-10 with extended measurement range, and the HG-C1050-20 with high accuracy.
