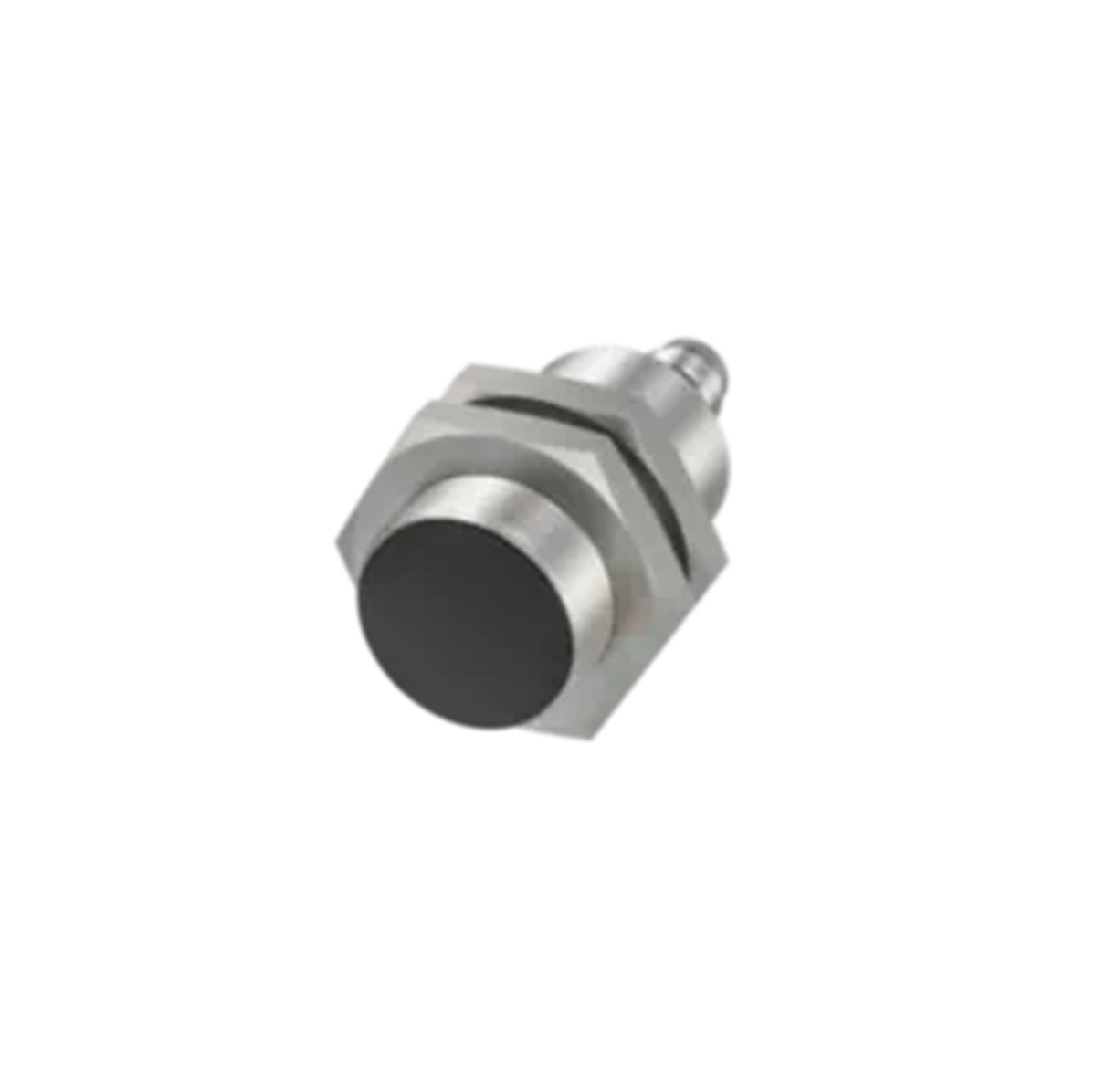

Balluff BES 516-367-G-E5-Y-S49 Inductive Sensor PNP NC 8mm M8 3-Wire
$88.08
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Balluff BES 516-367-G-E5-Y-S49 Inductive Sensor
Specifications:
Sensing Type: Inductive
Output Type: PNP NC
Sensing Distance: 8mm
Thread Size: M8
Number of Wires: 3
Housing Material: PBT
Protection Class: IP67
Operating Temperature Range: -25°C to +70°C
Supply Voltage: 10 to 30 VDC
Current Consumption: 10 mA
Switching Frequency: 1 kHz
LED Indicator: Yes
Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Suitability:
Detecting ferrous metals
Harsh environments
* Food and beverage, packaging, automotive industries
Full Specifications and Key Features:
Product Name: Balluff BES 516-367-G-E5-Y-S49 Inductive Sensor
Sensing Type: Inductive
Output Type: PNP NC
Sensing Distance: 8mm
Thread Size: M8
Number of Wires: 3
Housing Material: PBT
Protection Class: IP67
Operating Temperature Range: -25°C to +70°C
Supply Voltage: 10 to 30 VDC
Current Consumption: 10 mA
Switching Frequency: 1 kHz
LED Indicator: Yes
Reverse Polarity Protection: Yes
Short Circuit Protection: Yes
Model Suitability:
Suitable for detecting ferrous metals
Ideal for applications in harsh environments
Can be used in food and beverage, packaging, and automotive industries
Full Description:
The Balluff BES 516-367-G-E5-Y-S49 Inductive Sensor is a high-quality sensor designed for reliable and precise detection of ferrous metals. With its compact size and robust construction, it is ideal for use in demanding industrial environments. The sensor features a PNP NC output, which provides a normally closed contact that opens when a target is detected. The 8mm sensing distance and M8 thread size make it suitable for a wide range of applications. The 3-wire design simplifies installation and wiring. The sensor is protected against reverse polarity and short circuits, ensuring reliable operation. The LED indicator provides visual feedback on the sensor’s status.
