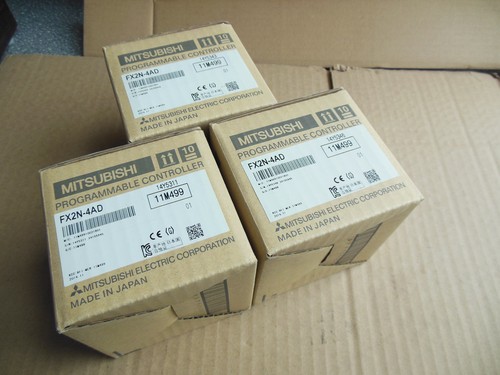

Mitsubishi FX2N-4AD Programmable Controller
$123.20
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The Mitsubishi FX2N-4AD Programmable Controller is an analog input module designed for FX2N series PLCs. It features 4 analog input channels, accepts voltage (0-10V) or current (4-20mA) signals, and provides 12-bit resolution for precise measurements. Ideal for temperature, pressure, and flow control applications.
The Mitsubishi FX2N-4AD Programmable Controller is a specialized analog input module meticulously engineered for seamless integration with the FX2N series of Programmable Logic Controllers (PLCs). This module significantly expands the capabilities of the PLC system by providing a reliable interface for analog sensors and devices.
Specifications:
- Product Title: Mitsubishi FX2N-4AD Programmable Controller
- Model: FX2N-4AD
- Number of Analog Input Channels: 4
- Input Signal Types: Voltage (0-10V DC) or Current (4-20mA DC), selectable per channel
- Resolution: 12-bit (4096 steps)
- Input Impedance: Voltage: 1 MΩ, Current: 250 Ω
- Conversion Speed: 2 ms per channel
- Accuracy: ±0.1% of full scale
- Isolation: Non-isolated
- Power Supply: 5V DC from the base unit
- Current Consumption: 60mA (typical)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Dimensions: (H)90mm x (W)55mm x (D)87mm
- Weight: Approximately 150g
Key Features:
- Multiple Input Types: Accepts both voltage and current signals, offering flexibility in sensor selection.
- High Resolution: 12-bit resolution ensures precise and accurate analog-to-digital conversion.
- Fast Conversion Speed: Enables real-time monitoring and control with a conversion speed of 2ms per channel.
- Compact Design: Space-saving design allows for easy integration into existing control panels.
- Easy Integration: Seamlessly integrates with FX2N series PLCs, simplifying system setup and programming.
Model Suitability:
The FX2N-4AD is ideally suited for use with the following Mitsubishi FX2N series PLC models:
- FX2N-16MR
- FX2N-32MR
- FX2N-48MR
- FX2N-64MR
- FX2N-80MR
- FX2N-128MR
- FX2N-16MT
- FX2N-32MT
- FX2N-48MT
- FX2N-64MT
- FX2N-80MT
- FX2N-128MT
This module is particularly well-suited for applications requiring the monitoring and control of analog signals, such as temperature, pressure, flow, and level control in industrial automation systems.
