FESTO MHE3-MS1H-3/2O-1/8 525167 Solenoid Valve
$113.73
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.

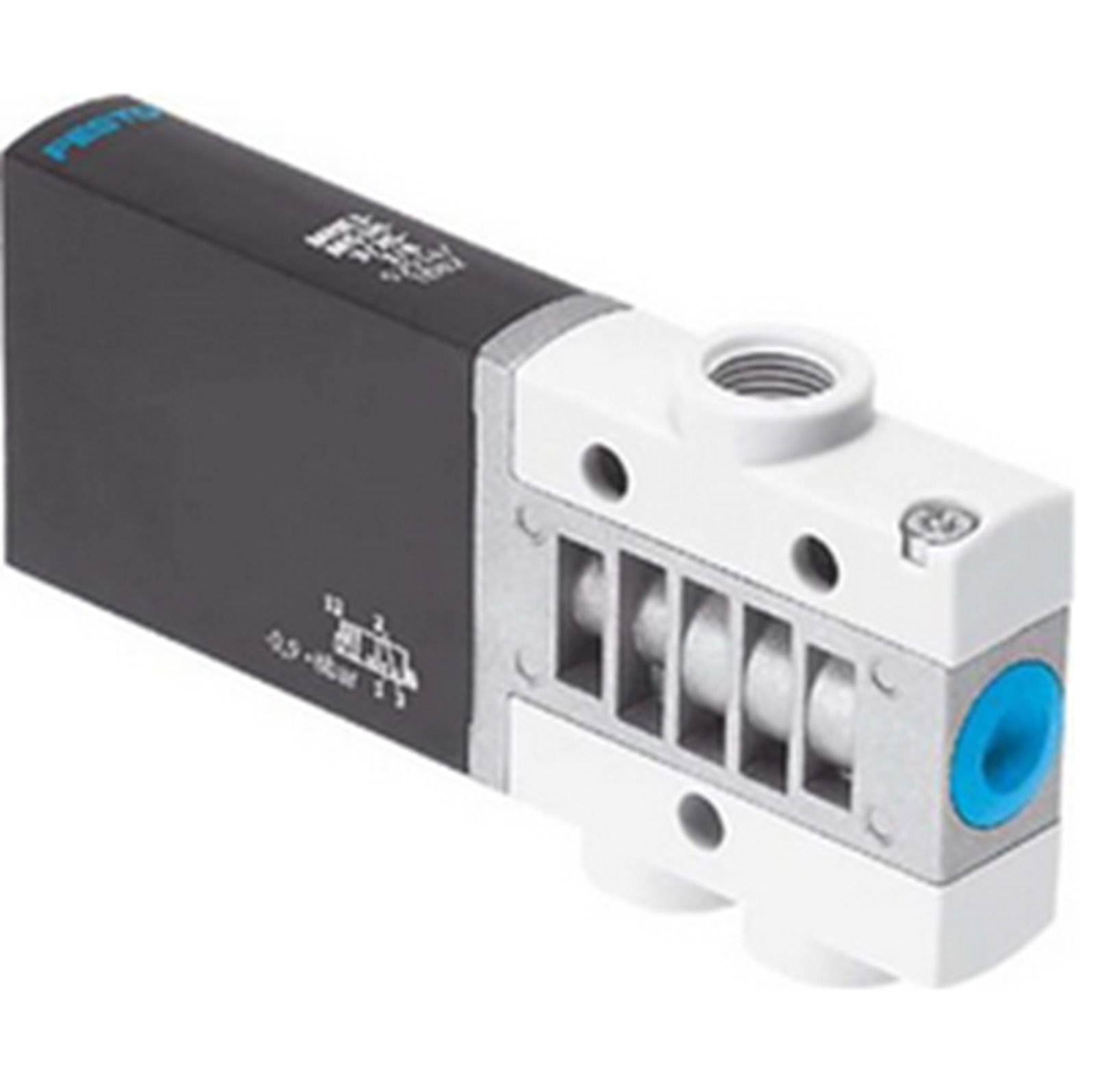

FESTO MHE3-MS1H-3/2O-1/8 525167 Solenoid Valve
This high-performance solenoid valve is designed for pneumatic systems. It features a 3/2-way design, 1/8″ port size, and pressure range of 0.5 to 8 bar. With a flow rate of 100 l/min, response time of 10 ms, and operating temperature range of -10 to 60°C, it offers fast and reliable operation. IP65 rated for protection against dust and water, it can be panel mounted for easy installation. Suitable for use with air, nitrogen, and other non-corrosive gases.
Full Specifications and Key Features:
Product Name: FESTO MHE3-MS1H-3/2O-1/8 525167 Solenoid Valve
Type: 3/2-way solenoid valve
Port Size: 1/8″
Pressure Range: 0.5 to 8 bar
Flow Rate: 100 l/min
Voltage: 24 VDC
Power Consumption: 5 W
Response Time: 10 ms
Operating Temperature: -10 to 60°C
Protection Class: IP65
Mounting: Panel mount
Model Suitability:
Suitable for use in pneumatic systems
Ideal for applications requiring fast response times
Can be used with air, nitrogen, and other non-corrosive gases
Full Description:
The FESTO MHE3-MS1H-3/2O-1/8 525167 Solenoid Valve is a high-performance solenoid valve designed for use in pneumatic systems. It features a 3/2-way design, a 1/8″ port size, and a pressure range of 0.5 to 8 bar. The valve has a flow rate of 100 l/min, a response time of 10 ms, and an operating temperature range of -10 to 60°C. It is IP65 rated for protection against dust and water ingress and can be panel mounted for easy installation. The valve is suitable for use with air, nitrogen, and other non-corrosive gases.
