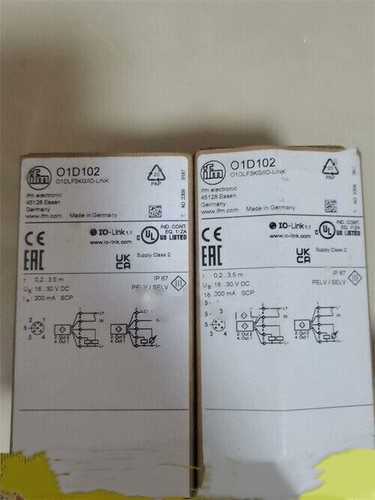

IFM O1D102 Distance Sensor
$396.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
The IFM O1D102 Distance Sensor offers precise distance measurement with a range of up to 10 meters. Key features include a high accuracy, fast response time, and robust design suitable for industrial environments. Ideal for automation, robotics, and process control applications.
The IFM O1D102 Distance Sensor is a cutting-edge solution for precise and reliable distance measurement in a variety of industrial applications. This sensor utilizes advanced time-of-flight technology to accurately determine the distance to objects, providing real-time data for process monitoring and control.
Specifications:
- Model: O1D102
- Sensing Range: 0.2 m to 10 m (depending on target reflectivity)
- Light Source: Infrared LED
- Wavelength: 880 nm
- Resolution: 1 mm
- Accuracy: ± 10 mm
- Repeatability: ± 5 mm
- Response Time: < 5 ms
- Output Signal: Analog (4-20 mA), Digital (PNP/NPN configurable)
- Operating Voltage: 18-30 VDC
- Current Consumption: < 100 mA
- Housing Material: Stainless Steel
- Protection Class: IP67
- Operating Temperature: -25°C to +70°C
- Connection: M12 connector
- Dimensions: 38 mm x 38 mm x 76 mm
- Weight: Approximately 150 g
Key Features:
- High-precision distance measurement
- Long sensing range up to 10 meters
- Fast response time for real-time monitoring
- Robust stainless steel housing for harsh environments
- Configurable analog and digital outputs for versatile integration
- Easy setup and configuration via IO-Link
- Integrated temperature compensation for stable performance
- Visible red light for easy alignment
Suitable Applications and Models:
- Automation: Position detection, object recognition, and collision avoidance in automated systems.
- Robotics: Distance control for robot arms, navigation assistance for mobile robots.
- Process Control: Level monitoring in tanks, material detection on conveyor belts.
- Logistics: Height measurement of packages, presence detection in storage systems.
- Machine Building: Integration into custom machines for precise positioning tasks.
The IFM O1D102 is designed for use in diverse industrial environments, providing reliable and accurate distance measurement for improved process control and automation.
