IFM IF5622 Inductive Sensor
$62.48
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.

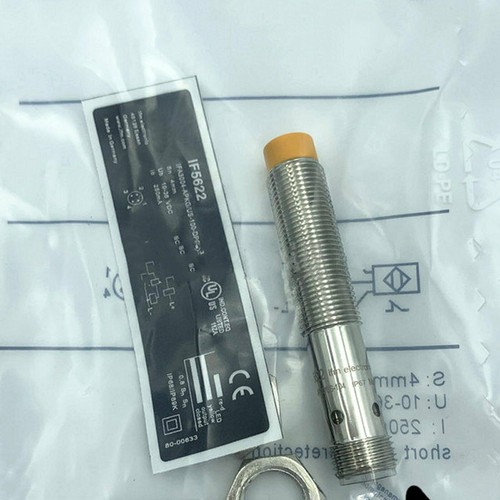

The IFM IF5622 Inductive Sensor offers reliable object detection with a flush mount design and M18 cylindrical housing. Featuring a sensing range of 8 mm, PNP/NO output function, and a 20…250 V AC operating voltage, it’s ideal for diverse industrial applications.
The IFM IF5622 Inductive Sensor is a robust and reliable solution for non-contact object detection in a wide range of industrial automation applications. This sensor features a flush mount design, simplifying installation and protecting the sensor from physical damage. Its cylindrical M18 housing, constructed from durable brass with a white bronze coating, ensures resilience in harsh environments.
Key Specifications:
- Product Title: IFM IF5622 Inductive Sensor
- Model: IF5622
- Mounting: Flush mountable
- Housing: Cylindrical M18
- Housing Material: Brass, white bronze coated
- Sensing Range: 8 mm
- Output Function: PNP normally open (NO)
- Electrical Design: AC
- Operating Voltage: 20…250 V AC
- Voltage Drop: ≤ 6 V AC
- Minimum Load Current: 5 mA
- Leakage Current: ≤ 2.5 mA
- Switching Frequency: 25 Hz
- Protection Class: II
- Reverse Polarity Protection: No
- Short-circuit Protection: No
- Overload Protection: No
- Ambient Temperature: -25…70 °C
- Connection: Connector M12
- IP Rating: IP67
- Materials: Brass, white bronze coated; PBT; PA
The IF5622 sensor’s 8 mm sensing range allows for accurate detection of metallic objects without physical contact, reducing wear and tear and improving system longevity. Its PNP normally open (NO) output function provides a clear signal for control systems, while the AC electrical design and broad 20…250 V AC operating voltage range ensure compatibility with various power supplies. The sensor is equipped with a M12 connector for easy and secure electrical connection.
With an IP67 rating, the IFM IF5622 is protected against dust and water immersion, making it suitable for demanding industrial environments. Its robust construction and reliable performance make it an excellent choice for applications such as position detection, object counting, and machine monitoring.
