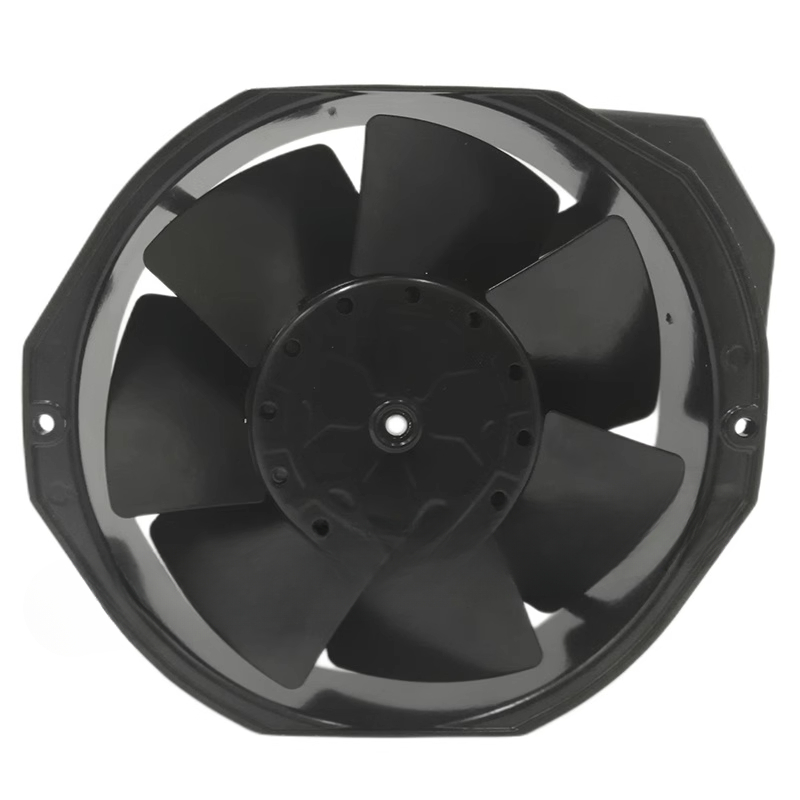

Ebm-papst W2S142-BB01-16 Axial Fan 172mm 115VAC 2800RPM High Performance
$150.69
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst W2S142-BB01-16 Axial Fan 172mm 115VAC 2800RPM High Performance
Thank you for reading this post, don't forget to subscribe!Full Specifications:
– Manufacturer: Ebm-papst
– Product Category: Axial Fans
– Series: W2S142
– Part Number: W2S142-BB01-16
– Fan Type: AC
– Supply Voltage: 115 VAC
– Operating Voltage Range: 85 to 135 VAC
– Frequency: 50/60 Hz
– Speed: 2800 RPM (at 60 Hz)
– Air Flow: 160 CFM (Cubic Feet per Minute)
– Noise Level: 55 dBA
– Power Rating: 38 W
– Current Rating: 0.34 A
– Frame Dimensions: 172mm x 150mm x 51mm
– Frame Material: Die-cast aluminum
– Blade Material: Sheet steel
– Bearing Type: Ball
– Motor Protection: Impedance protected
– Termination: Terminal block
– Operating Temperature: -20°C to +70°C
– Weight: 1.3 kg
– Certification: UL, CSA, CE
– RoHS Compliant: Yes
– IP Rating: IP20
Key Features:
– High-performance impeller for maximum airflow
– Robust and durable construction with die-cast aluminum housing and sheet steel blades
– Ball bearing design for long service life and smooth operation
– Impedance protection to prevent motor burnout
– Terminal block for easy electrical connection
– Suitable for continuous operation (S1) at high ambient temperatures
– Compliance with international standards (UL, CSA, CE) for safety and reliability
– RoHS compliant for environmental sustainability
Models Suitability:
The Ebm-papst W2S142-BB01-16 Axial Fan is suitable for a wide range of applications where efficient cooling or ventilation is required, including but not limited to:
– Industrial control cabinets
– Frequency converters
– Welding machines
– Heat exchangers
– Machinery cooling systems
– Ventilation systems for buildings
– Electronic equipment cooling
– Automotive applications
– Renewable energy systems such as solar inverters or wind turbines
