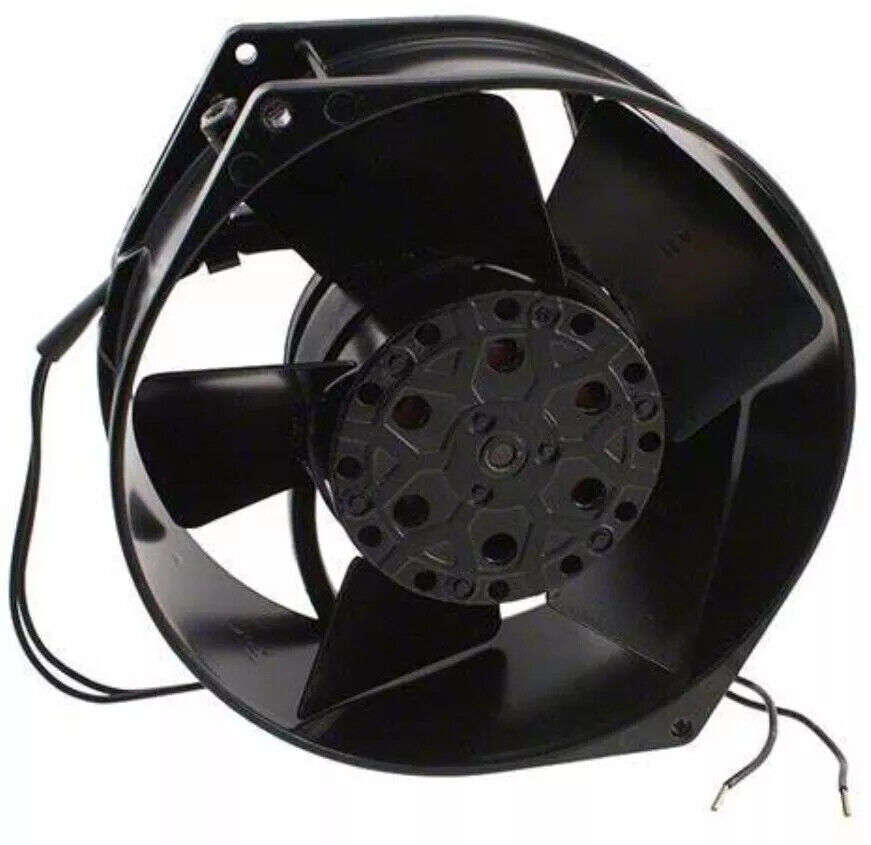

Ebm-papst W2S130-BM03-20 Axial Fan 150mm 115VAC 2800RPM High Performance
$73.99
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst W2S130-BM03-20 Axial Fan 150mm 115VAC 2800RPM High Performance
Thank you for reading this post, don't forget to subscribe!Full Specifications:
– Manufacturer: Ebm-papst
– Product Category: Axial Fans
– Series: W2S130
– Part Number: W2S130-BM03-20
– Fan Diameter: 150mm
– Voltage Rating: 115 VAC
– Operating Frequency: 50/60 Hz
– Speed: 2800 RPM (at 60Hz), 2400 RPM (at 50Hz)
– Air Flow: 190 CFM (at 60Hz), 160 CFM (at 50Hz)
– Power Rating: 38 W (at 60Hz), 34 W (at 50Hz)
– Current Rating: 0.32 A (at 60Hz), 0.36 A (at 50Hz)
– Noise Level: 55 dB(A)
– Bearing Type: Ball
– Motor Protection: Impedance Protected
– Termination: Terminal Block
– Material: Die-cast aluminum housing; Sheet steel impeller
– Operating Temperature: -20°C to +70°C
– Weight: 1.2 kg
– Certification: UL, CSA, VDE, CE
– Protection Class: IP20
Key Features:
– High-performance impeller for maximum airflow
– Robust and durable construction with die-cast aluminum housing
– Efficient ball bearing system for long service life
– Impedance protection to prevent motor burnout
– Terminal block for easy electrical connection
– Designed for continuous operation (S1)
– Low noise emission for noise-sensitive environments
– Easy to install and maintain
– Suitable for a wide range of applications due to its versatile design
Models Suitability:
The Ebm-papst W2S130-BM03-20 Axial Fan is suitable for a variety of applications where efficient cooling or ventilation is required. This includes but is not limited to:
– Industrial machinery cooling
– Electronic equipment cooling
– Enclosure cooling
– Welding machine cooling
– Control cabinet cooling
– Inverter cooling
– HVAC systems
– Refrigeration equipment
– Automotive applications
– Renewable energy systems such as solar inverters or wind turbines
This fan is designed to meet the needs of applications demanding high airflow and reliability in industrial, commercial, or technology settings where thermal management is critical.
