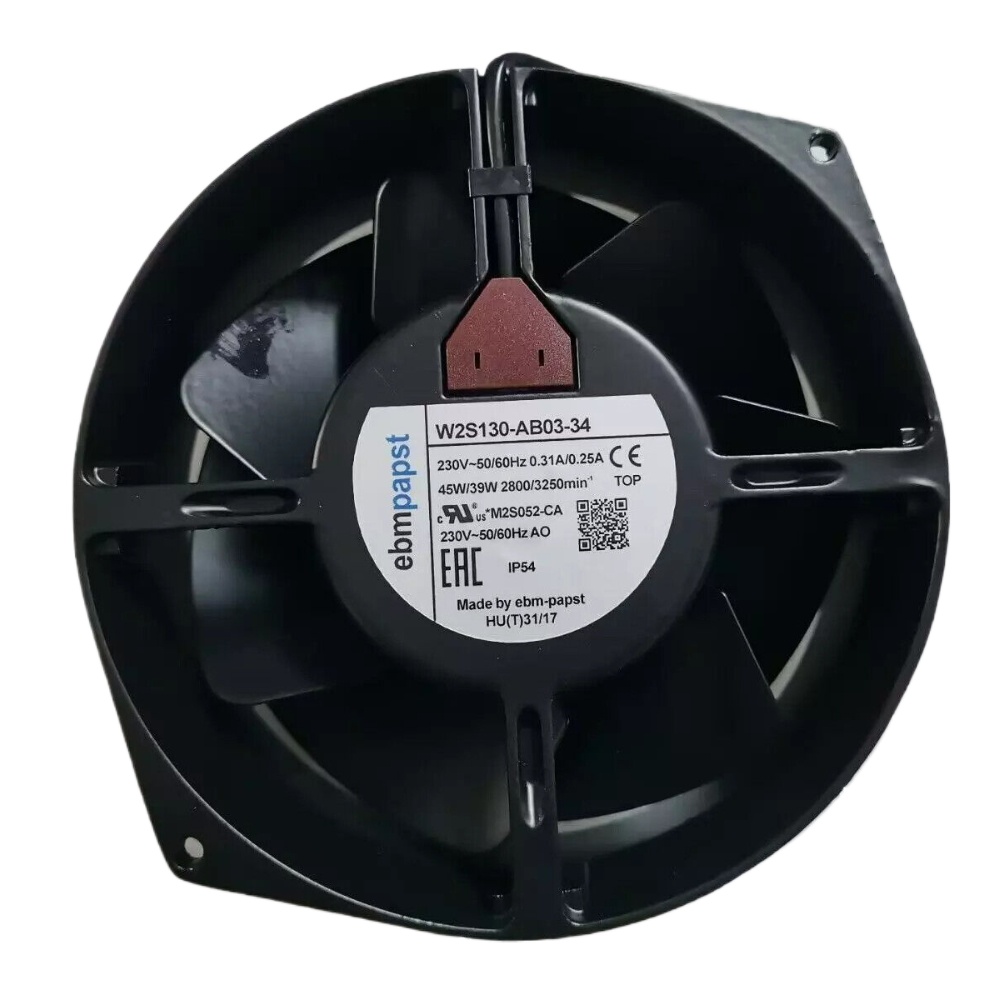

Ebm-papst W2S130-AB03-34 Axial Fan 150mm 115VAC 2800RPM High Performance
$117.25
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst W2S130-AB03-34 Axial Fan 150mm 115VAC 2800RPM High Performance
Full Specifications:
– Fan Type: Axial
– Size / Dimension: 150mm x 150mm x 55mm
– Voltage Rating: 115 VAC
– Operating Frequency: 50/60 Hz
– Power Rating: 38 W
– Speed: 2800 RPM (at 60Hz), 2400 RPM (at 50Hz)
– Air Flow: 190 CFM (at 60Hz), 160 CFM (at 50Hz)
– Noise Level: 55 dBA
– Bearing Type: Ball
– Material – Frame: Die-cast aluminum
– Material – Blades: Sheet steel, coated in black
– Termination: Terminal block
– Weight: 1.2 kg
– Operating Temperature: -20°C to +70°C
– Protection Class: IP44
– Approval: CE, UL, CSA, VDE
– Expected Life: 50,000 hours at 40°C
Key Features:
– Sickle blade profile for enhanced airflow and reduced noise
– Maintenance-free ball bearing system for long service life
– Robust die-cast aluminum frame construction
– High-efficiency inlet ring for better performance
– Terminal block for easy connection
– Resistant to environmental factors with IP44 protection
– Can be used in any mounting position
– Speed-controllable to adapt to varying cooling requirements
– Thermally protected motor
– Direction of rotation is clockwise, seen on rotor
Models Suitability:
– Suitable for high-performance cooling applications in electronics, telecommunications, and industrial systems
– Ideal for use in control cabinets, inverters, welding machines, solar inverters, and automotive applications
– Can be implemented in HVAC systems for both commercial and residential buildings
– Appropriate for heat exchangers, condensers, and refrigeration equipment
– Often used in medical devices that require reliable and quiet cooling
– Fits applications where space is limited but high airflow is needed
– Compatible with variable frequency drives for speed control in various industrial processes
