Ebm-papst W2S130-AA03-90 Axial Fan 150mm 115VAC 2800RPM High Performance

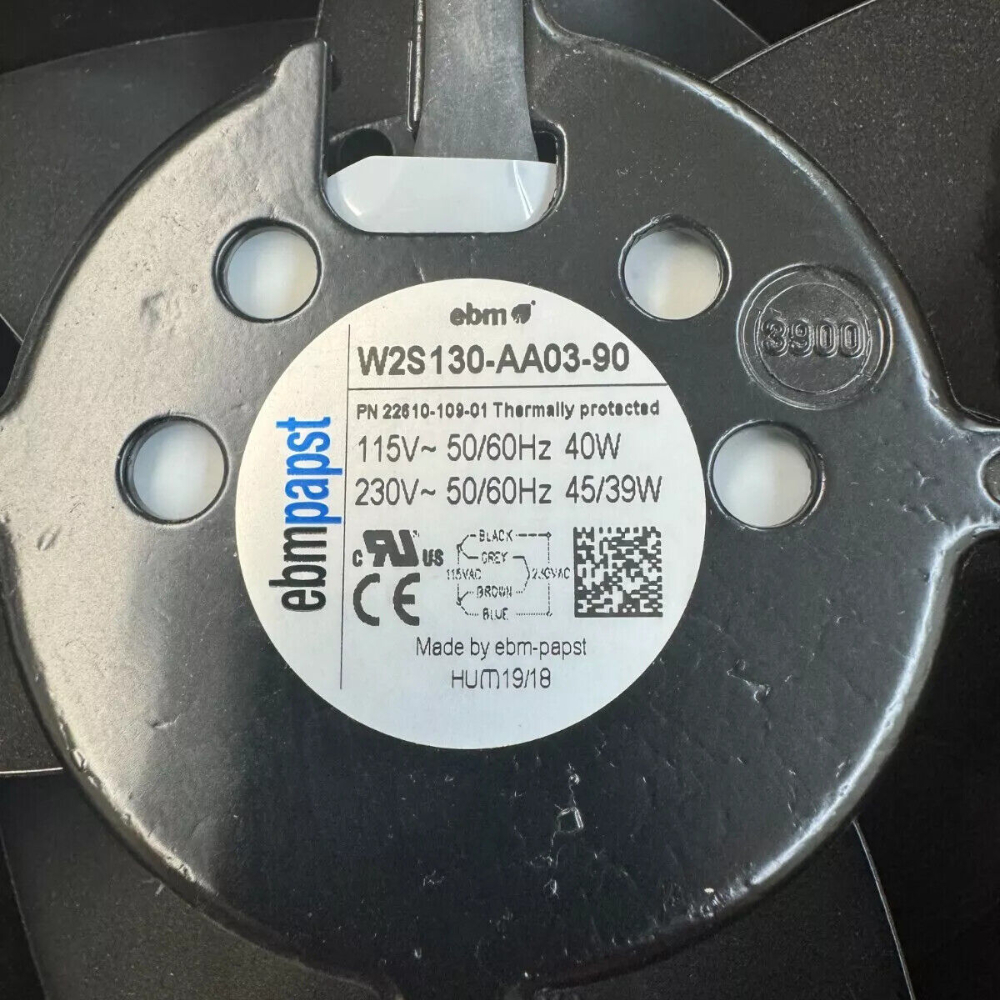

Product: Ebm-papst W2S130-AA03-90 Axial Fan 150mm 115VAC 2800RPM High Performance

Full Specifications:
– Model: W2S130-AA03-90
– Fan Type: Axial
– Material: Die-cast aluminum housing; fiberglass-reinforced plastic impeller
– Dimensions: 150mm x 55mm
– Voltage: 115 VAC
– Frequency: 50/60 Hz
– Power Input: 39W
– Current Draw: 0.34 A
– Speed: 2800 RPM (at 60Hz)
– Air Flow: 190 CFM (at 60Hz)
– Noise Level: 55 dB(A)
– Bearing Type: Ball
– Weight: 1.2 kg
– Connection: 2 x 0.187″ flat pin connectors
– Motor Protection: Impedance protected
– Operating Temperature Range: -20°C to +70°C
– Expected Life: L10 life expectancy of 55,000 hours at 40°C
– Compliance: UL, CSA, VDE approved; CE marked
– Mounting Position: Any
– Accessories: Finger guard, filter assembly, and inlet ring available (sold separately)

Key Features:
– High-performance motor designed for continuous operation
– Robust construction with a durable die-cast aluminum housing
– Efficient design providing high airflow with minimal noise
– Easy to install with versatile mounting options
– Maintenance-free ball bearing system for long service life
– Impedance protection to prevent motor burnout in case of rotor lock
– Suitable for a wide range of operating temperatures
– Compliance with international standards and certifications

Models Suitability:
The Ebm-papst W2S130-AA03-90 Axial Fan is suitable for a variety of applications where reliable and efficient cooling is required. These include but are not limited to:
– Industrial control cabinets
– Welding machines
– Heat exchangers
– Machinery cooling systems
– Ventilation systems for electronics
– HVAC systems
– Automotive applications
– Renewable energy systems such as solar inverters or wind turbines

This fan is designed to meet the needs of demanding environments, providing consistent performance and durability for industrial, commercial, and high-tech applications.
