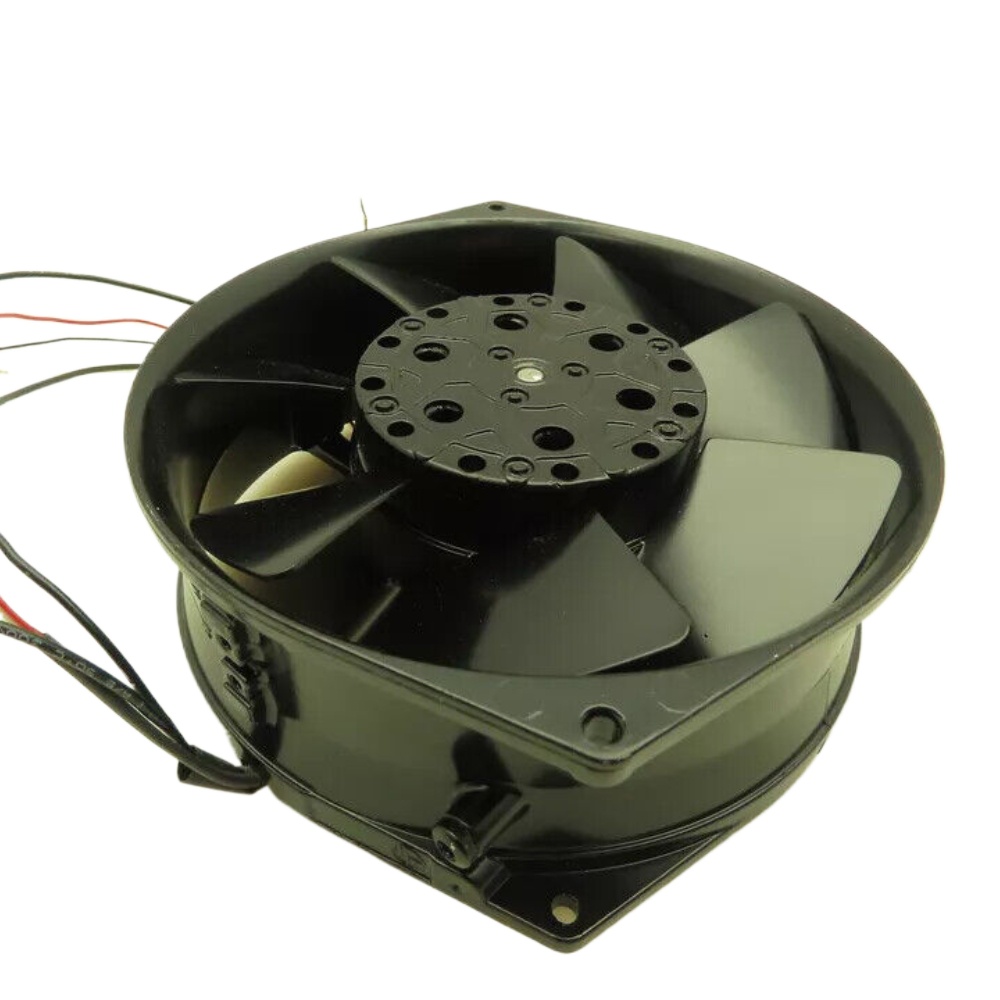

Ebm-papst W2S130-AA03-87 Axial Fan 150mm 115VAC 2800RPM High Performance

Product: Ebm-papst W2S130-AA03-87 Axial Fan 150mm 115VAC 2800RPM High Performance

Full Specifications:
– Model: W2S130-AA03-87
– Manufacturer: Ebm-papst
– Fan Type: Axial
– Size / Dimension: 150mm x 150mm x 55mm
– Voltage Rating: 115 VAC
– Operating Frequency: 50/60 Hz
– Power Rating: 38 W
– Speed: 2800 RPM (Revolutions Per Minute)
– Air Flow: 190 CFM (Cubic Feet per Minute)
– Noise Level: 55 dBA (Decibels)
– Bearing Type: Ball
– Motor: Shaded Pole Motor
– Material: Die-cast aluminum housing; Sheet steel impeller
– Termination: Terminal Block
– Operating Temperature: -20°C to +70°C
– Protection Class: IP20
– Approval: UL, CSA, CE
– Weight: 1.2 kg
– Mounting Position: Any
– Connection: Flying leads
– Insulation Class: F

Key Features:
– Robust and durable construction ensuring a long service life
– High-performance motor designed for continuous operation
– Compact design with impressive airflow and pressure characteristics
– Low energy consumption due to optimized aerodynamic design
– Easy to install with versatile mounting options
– Maintenance-free ball bearings for reliable operation
– Resistant to environmental factors with a wide operating temperature range
– Equipped with thermal overload protection for safety
– Compliant with international standards and certifications

Models Suitability:
The Ebm-papst W2S130-AA03-87 Axial Fan is suitable for a wide range of applications where efficient cooling or air movement is required. These include but are not limited to:
– Industrial control cabinets
– Welding machines
– Heat exchangers
– Machinery cooling systems
– Ventilation systems for electronics
– HVAC systems
– Automotive applications
– Renewable energy systems such as solar inverters
– Food and beverage industry equipment
– Medical devices requiring reliable thermal management
