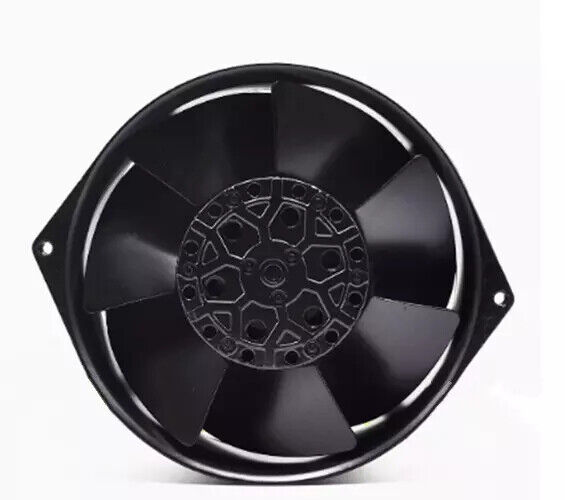

Ebm-papst W2S130-AA03-69 Axial Fan 150mm 115VAC 2800RPM High Performance

Product: Ebm-papst W2S130-AA03-69 Axial Fan 150mm 115VAC 2800RPM High Performance

Full Specifications:
– Model: W2S130-AA03-69
– Manufacturer: Ebm-papst
– Fan Type: Axial
– Size / Dimension: 150mm x 150mm x 55mm
– Voltage Rating: 115 VAC
– Operating Frequency: 50/60 Hz
– Power Rating: 38 W
– Speed: 2800 RPM (Revolutions Per Minute)
– Air Flow: 190 CFM (Cubic Feet per Minute)
– Noise Level: 55 dBA
– Bearing Type: Ball
– Material – Frame: Die-cast aluminum
– Material – Blades: Sheet steel, coated in black
– Termination: 2 terminals
– Operating Temperature: -20°C to +70°C
– Protection Class: IP20
– Weight: 1.2 kg
– Certification: UL, CSA, CE
– Life Expectancy: 50,000 hours at 25°C

Key Features:
– High-performance motor ensuring reliable cooling and airflow
– Robust construction with die-cast aluminum frame and high-quality steel blades
– Designed for continuous operation (S1) in challenging industrial environments
– Equipped with maintenance-free ball bearings for long service life
– Easy to install with versatile mounting options
– Energy-efficient design with low power consumption
– Low noise emission for use in noise-sensitive areas
– Thermal overload protector to prevent motor burnout
– Resistant to a wide range of operating temperatures
– Compliant with international safety standards

Models Suitability:
The Ebm-papst W2S130-AA03-69 Axial Fan is suitable for a wide range of applications where efficient cooling is required, including but not limited to:
– Control cabinets
– Variable frequency drives
– Welding machines
– Heat exchangers
– Industrial machinery
– Ventilation systems
– Electronics cooling
– Automotive applications
– Renewable energy systems (such as solar inverters)
– Food and beverage industry equipment

This fan is designed to meet the needs of applications demanding high airflow and reliability in industrial, commercial, and high-tech environments where performance and durability are critical.
