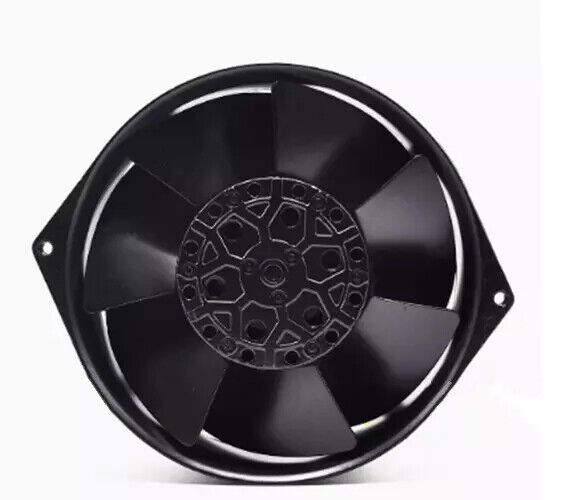

Ebm-papst W2S130-AA03-64 Axial Fan 150mm 115VAC 2800RPM High Performance Robust Design

Product: Ebm-papst W2S130-AA03-64 Axial Fan 150mm 115VAC 2800RPM High Performance Robust Design

Full Specifications:
– Model: W2S130-AA03-64
– Manufacturer: Ebm-papst
– Fan Type: Axial
– Size / Dimension: 150mm x 150mm x 55mm
– Voltage: 115 VAC
– Operating Frequency: 50/60 Hz
– Power Rating: 38 W
– Speed: 2800 RPM (at 60Hz), 2400 RPM (at 50Hz)
– Air Flow: 190 CFM (at 60Hz), 160 CFM (at 50Hz)
– Noise Level: 55 dBA
– Bearing Type: Ball
– Material – Frame: Die-cast aluminum
– Material – Blades: Sheet steel, coated in black
– Termination: Terminal block
– Operating Temperature: -20°C to +70°C
– Weight: 1.2 kg
– Protection Class: IP44
– Approval: CE, UL, CSA, VDE
– Expected Life: 50,000 hours at 40°C

Key Features:
– High-performance motor designed for continuous operation
– Robust design with die-cast aluminum housing and sheet steel blades
– Efficient energy consumption due to optimized aerodynamic blade design
– Low noise emission for use in noise-sensitive environments
– Maintenance-free ball bearings for long service life
– Easy installation with terminal block connection
– Resistant to environmental factors with IP44 protection class
– Suitable for a wide range of operating temperatures
– Compliant with international standards and certifications

Models Suitability:
– Industrial cooling systems
– Electronic cabinet cooling
– Welding machines
– Woodworking machinery
– Packaging machinery
– Vending machines
– HVAC systems
– Data center cooling solutions
– Automotive applications
– Renewable energy systems (e.g., solar inverters)
– Medical equipment cooling

The Ebm-papst W2S130-AA03-64 Axial Fan is engineered for demanding applications where high airflow and reliability are critical. Its robust construction and high-quality components make it an ideal choice for a variety of industrial, commercial, and technological environments.
