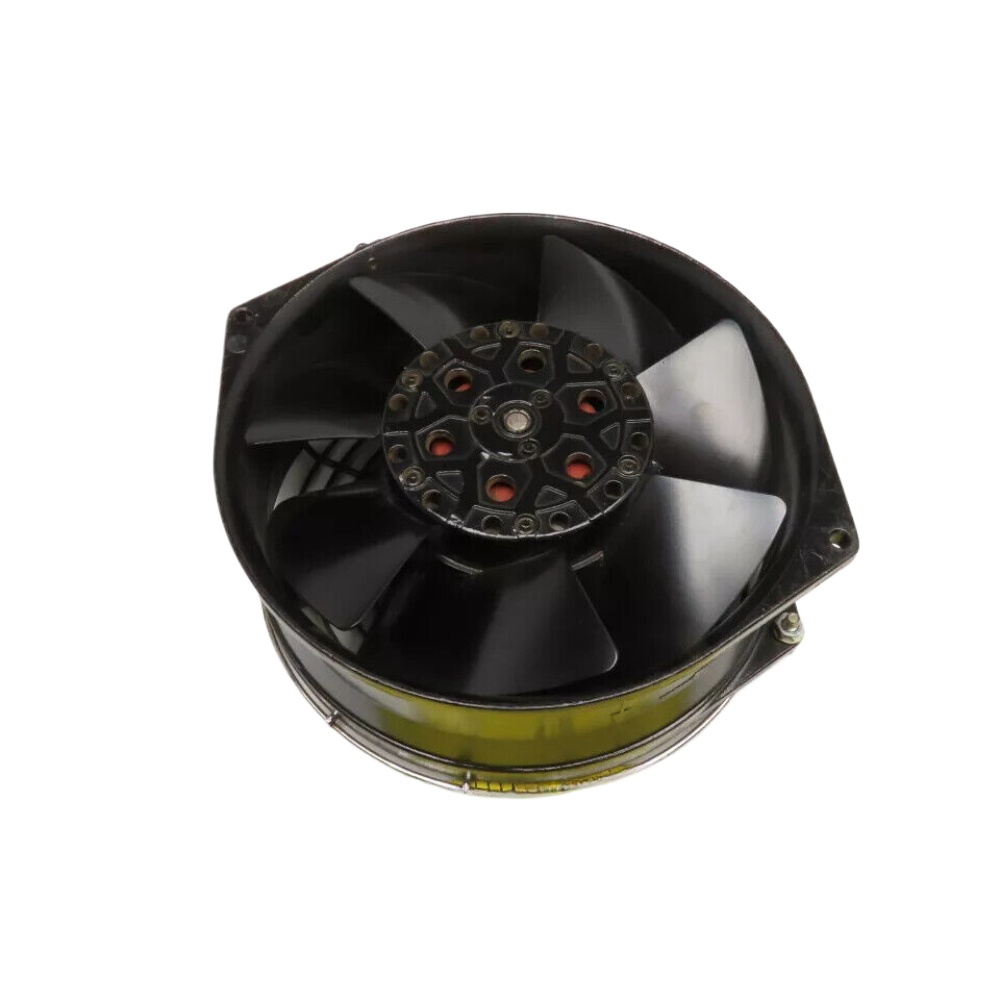

Ebm-papst W2S130-AA03-44 Axial Fan 150mm 115VAC 2800RPM High Performance

Product: Ebm-papst W2S130-AA03-44 Axial Fan 150mm 115VAC 2800RPM High Performance

Specifications:
– Model: W2S130-AA03-44
– Manufacturer: Ebm-papst
– Fan Type: Axial
– Size / Dimension: 150mm x 150mm x 55mm
– Voltage: 115 VAC
– Operating Frequency: 50/60 Hz
– Power Rating: 39 W (Watt)
– Speed: 2800 RPM (Revolutions per Minute)
– Air Flow: 190 CFM (Cubic Feet per Minute)
– Noise Level: 55 dBA (Decibels)
– Bearing Type: Ball
– Material – Frame: Die-cast aluminum
– Material – Impeller: Sheet steel, coated in black
– Termination: Terminal block
– Operating Temperature: -20°C to +70°C
– Protection Class: IP20
– Approval: UL, CSA, CE
– Weight: 1.3 kg (Kilograms)
– Expected Life: 37500 hours (L10 at 40°C)

Key Features:
– High-performance motor designed for continuous operation
– Robust and durable construction with die-cast aluminum housing
– Efficient design providing high airflow with minimal noise
– Easy to connect with terminal block termination
– Equipped with a thermal protector to prevent overheating
– Maintenance-free ball bearings for long service life
– Resistant to harsh environmental conditions within its operating temperature range
– Compliant with international standards and certifications for safety and performance

Models Suitability:
The Ebm-papst W2S130-AA03-44 Axial Fan is suitable for a wide range of applications where efficient cooling or air movement is required. These include but are not limited to:
– Industrial control cabinets
– Welding machines
– Heat exchangers
– Machinery cooling systems
– Ventilation systems for electronics
– HVAC systems
– Automotive applications
– Renewable energy systems such as solar inverters
– Medical equipment cooling
– Food and beverage industry machinery

Its robust design and high-performance specifications make it an ideal choice for demanding industrial environments where reliability and longevity are critical.
