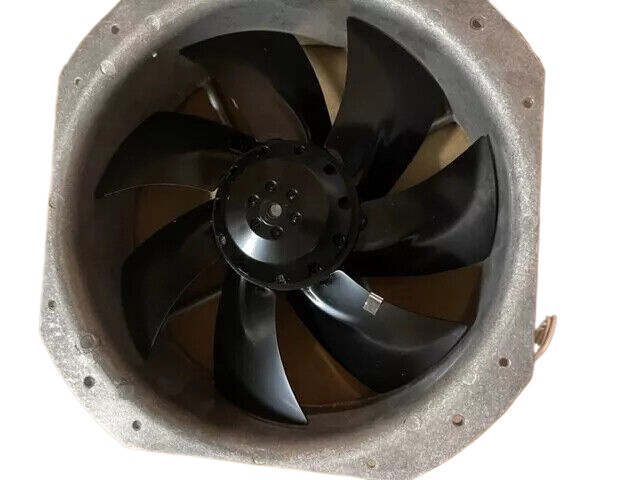

Ebm-papst W2E250-HL06-21 Axial Fan 280mm 230VAC High Performance Robust Design

Product: Ebm-papst W2E250-HL06-21 Axial Fan 280mm 230VAC High Performance Robust Design

Full Specifications:
– Fan Type: Axial
– Size / Dimension: 280mm (Outer Diameter)
– Voltage Rating: 230 VAC
– Power Rating: Typically around 150 Watts
– Frequency: 50/60 Hz
– Air Flow: Approximately 1080 cubic meters per hour
– Speed: 2550 RPM (Revolutions Per Minute) at 50 Hz, 2750 RPM at 60 Hz
– Noise Level: 72 dB(A)
– Bearing Type: Ball
– Motor: External Rotor Shaded-Pole Motor
– Connection: Terminal Board
– Material: Fan Blade – Sheet Steel, Coated in Black; Housing – Die-Cast Aluminum
– Protection Class: IP54 (Protection against dust and splash water)
– Direction of Rotation: Counter-clockwise, seen on rotor
– Insulation Class: F
– Mounting Position: Any
– Condensate Discharge Holes: Provided
– Weight: Approximately 4.5 kg
– Certification: CE, UL, CSA, VDE approved, EAC, CCC
– Ambient Temperature Range: -25°C to +70°C

Key Features:
– Sickle-shaped fan blades ensure optimal airflow and efficiency
– Robust design suitable for demanding applications
– Maintenance-free ball bearings for long service life
– High-performance motor designed for continuous operation
– Integrated motor protection for enhanced durability
– Aerodynamically optimized blade geometry for reduced noise emission
– Easy to install with versatile mounting options
– Energy-efficient operation due to optimized flow techniques

Models Suitability:
The Ebm-papst W2E250-HL06-21 Axial Fan is suitable for a wide range of applications where robust and reliable cooling is required. These include but are not limited to:
– Industrial control cabinets
– Variable frequency drives
– Welding machines
– Heat exchangers
– HVAC systems
– Refrigeration equipment
– Electronics cooling
– Renewable energy systems such as solar inverters or wind power converters
– Automotive applications requiring high-performance cooling solutions
