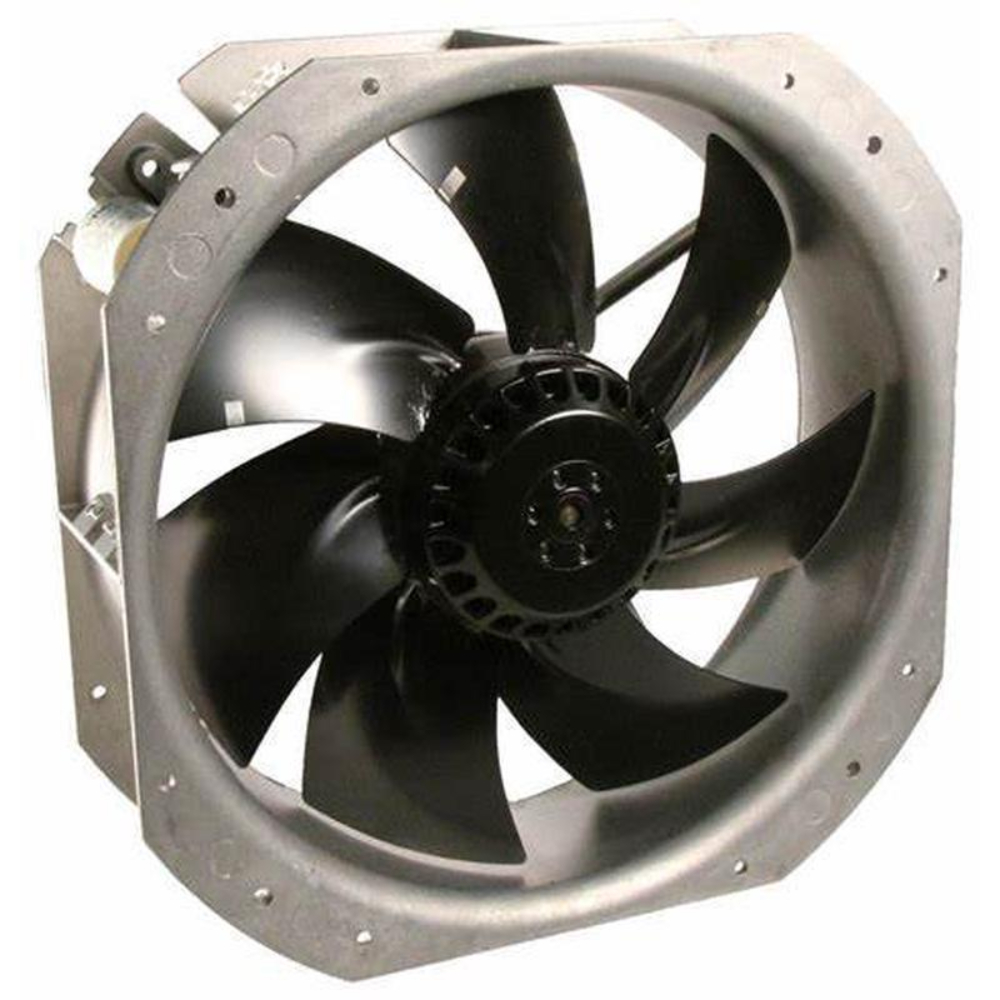

Ebm-papst W2E250-HL06-10 Axial Fan 280mm 230VAC High Performance Robust Design

Product: Ebm-papst W2E250-HL06-10 Axial Fan 280mm 230VAC High Performance Robust Design

Full Specifications:
– Fan Type: Axial
– Model: W2E250-HL06-10
– Manufacturer: Ebm-papst
– Nominal Diameter: 280mm
– Voltage: 230VAC
– Frequency: 50/60 Hz
– Power Input: 190W
– Current Draw: 0.85A
– Speed: 2550 RPM (max)
– Air Flow: 1080 m³/h (max)
– Noise Level: 72 dB(A)
– Bearing Type: Ball
– Direction of Rotation: Clockwise, viewed toward rotor
– Material of Impeller: Sheet steel, coated in black
– Material of Wall Ring: Die-cast aluminum
– Protection Class: IP54
– Insulation Class: F
– Ambient Temperature Range: -20°C to +70°C
– Connection: Terminal box with PG 13.5 cable gland, capacitor inside the terminal box
– Weight: 4.5 kg
– Certification: CE, UL, CSA, VDE, CCC, EAC

Key Features:
– High-performance motor ensuring efficient cooling and ventilation
– Robust design suitable for demanding applications
– Maintenance-free ball bearings for long service life
– Energy-efficient operation with optimized aerodynamic impeller design
– Integrated terminal box for easy electrical connection
– Protection against dust and water splashes with IP54 rating
– Suitable for continuous operation (S1)
– Can be mounted in any position for flexible installation
– Thermal overload protector (TOP) wired internally for motor protection
– Low noise emission for use in noise-sensitive environments

Models Suitability:
– Industrial cooling systems
– Ventilation systems for machinery and equipment
– Heat exchangers
– Control cabinet cooling
– Welding machines
– Condensing units
– Commercial refrigeration
– Air conditioning systems
– Electronics cooling
– Renewable energy systems (e.g., solar inverters, wind turbines)
– Automotive applications (e.g., engine cooling)
– Agricultural equipment cooling systems
