Ebm-papst W2E200-HK86-C01 Axial Fan 225mm 230VAC High Performance Robust Design
$166.62
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.

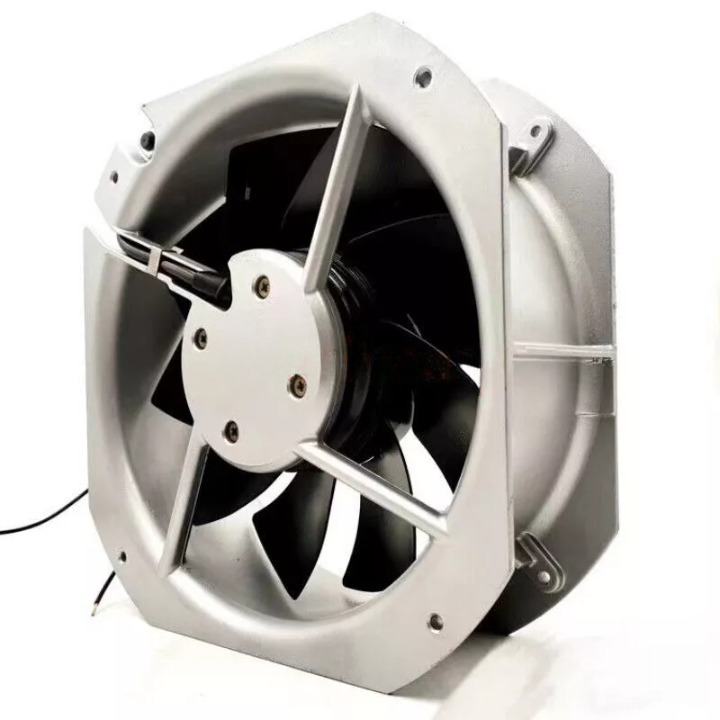

Product: Ebm-papst W2E200-HK86-C01 Axial Fan 225mm 230VAC High Performance Robust Design
Specifications:
– Fan Type: Axial
– Size: 225mm
– Voltage: 230 VAC
– Frequency: 50/60 Hz
– Power Consumption: 65/79 W
– Current Draw: 0.28/0.34 A
– Speed: 2450/2650 RPM
– Air Flow: 910/1040 m³/h
– Noise Level: 68 dB(A)
– Bearing Type: Ball
– Direction of Rotation: Counterclockwise, seen on rotor
– Material: Die-cast aluminum housing; Sheet steel impeller
– Protection Class: IP44
– Insulation Class: F
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Motor Protection: Thermal overload protector (TOP) wired internally
– Weight: 2.5 kg
– Certification: CE, UL, CSA, VDE, CCC
– Operating Temperature Range: -25°C to +70°C
Key Features:
– Sickle-shaped blade profile for increased efficiency and airflow
– High-performance motor designed for continuous operation
– Robust design with die-cast aluminum housing and sheet steel impeller
– Maintenance-free ball bearings for long service life
– Integrated thermal overload protection for safety and durability
– Compact and versatile for easy integration into various applications
– Low noise emission for operation in noise-sensitive environments
– Energy-efficient operation to reduce overall energy costs
– Easy to install with flat-pin connector system
Model Suitability:
– Industrial cooling systems
– Electronic cabinet cooling
– Ventilation systems for machinery and equipment
– Heat exchangers
– HVAC applications in commercial and industrial settings
– Refrigeration technology
– Welding equipment cooling
– Renewable energy systems such as solar inverters and wind turbines
– Automotive applications including engine and brake cooling systems
– Agricultural machinery requiring robust and reliable cooling solutions
