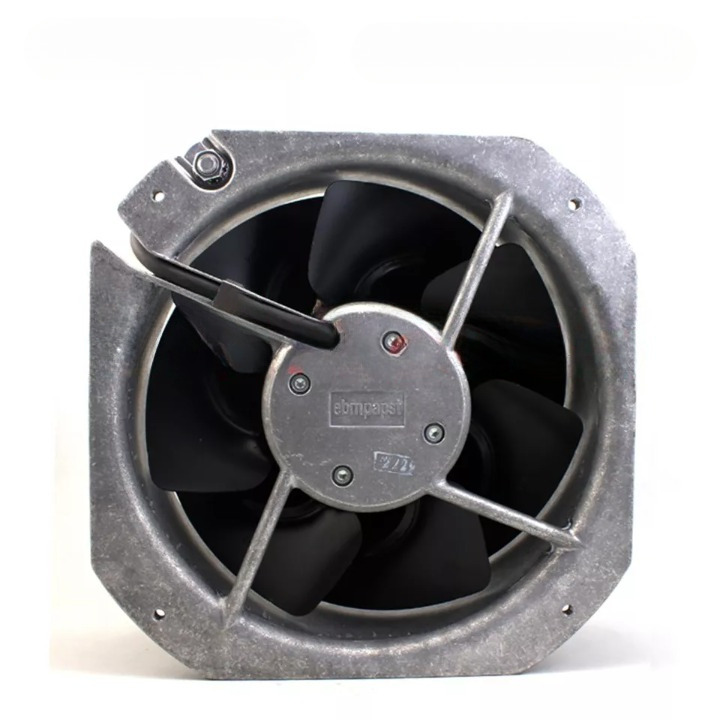

Ebm-papst W2E200-HK38-02 Axial Fan 225mm 230VAC High Performance Ball Bearing

Product: Ebm-papst W2E200-HK38-02 Axial Fan 225mm 230VAC High Performance Ball Bearing

Full Specifications:
– Fan Type: Axial
– Size / Dimension: 225mm (Diameter)
– Voltage: 230 VAC
– Bearing Type: Ball
– Power Connection Type: Terminal
– Material: Die-cast aluminum housing; Sheet steel impeller
– Air Flow: 775 CFM (Cubic Feet per Minute)
– Speed: 2550 RPM (Revolutions per Minute)
– Power Rating: 65 W (Watts)
– Current Type: AC
– Frequency: 50/60 Hz
– Noise Level: 68 dB(A)
– Weight: 2.3 kg
– Operating Temperature: -20°C to +70°C
– Protection Class: IP44
– Approval: CE, UL, CSA, VDE, CCC
– Cable Length: 500 mm
– Lifetime @ 40°C: 55000 h
– Mounting Position: Any
– Insulation Class: F

Key Features:
– High-performance ball bearings ensure long service life and reliability.
– Robust design with die-cast aluminum housing and sheet steel impeller for durability.
– High airflow rate of 775 CFM for efficient cooling and ventilation.
– Low noise operation at 68 dB(A) for minimal acoustic impact.
– Versatile mounting options and can be installed in any position.
– Energy-efficient motor design reduces power consumption.
– Easy to connect with terminal power connection type.
– Protection against environmental factors with an IP44 rating.
– Compliance with international standards and approvals for global use.

Models Suitability:
– Industrial cooling systems
– Ventilation systems for electronic equipment
– Cabinet cooling
– Heat exchangers
– Welding machines
– Commercial refrigeration
– HVAC applications
– Data center cooling solutions
– Automotive applications
– Renewable energy systems (e.g., solar inverters, wind turbines)
– Agricultural equipment cooling
