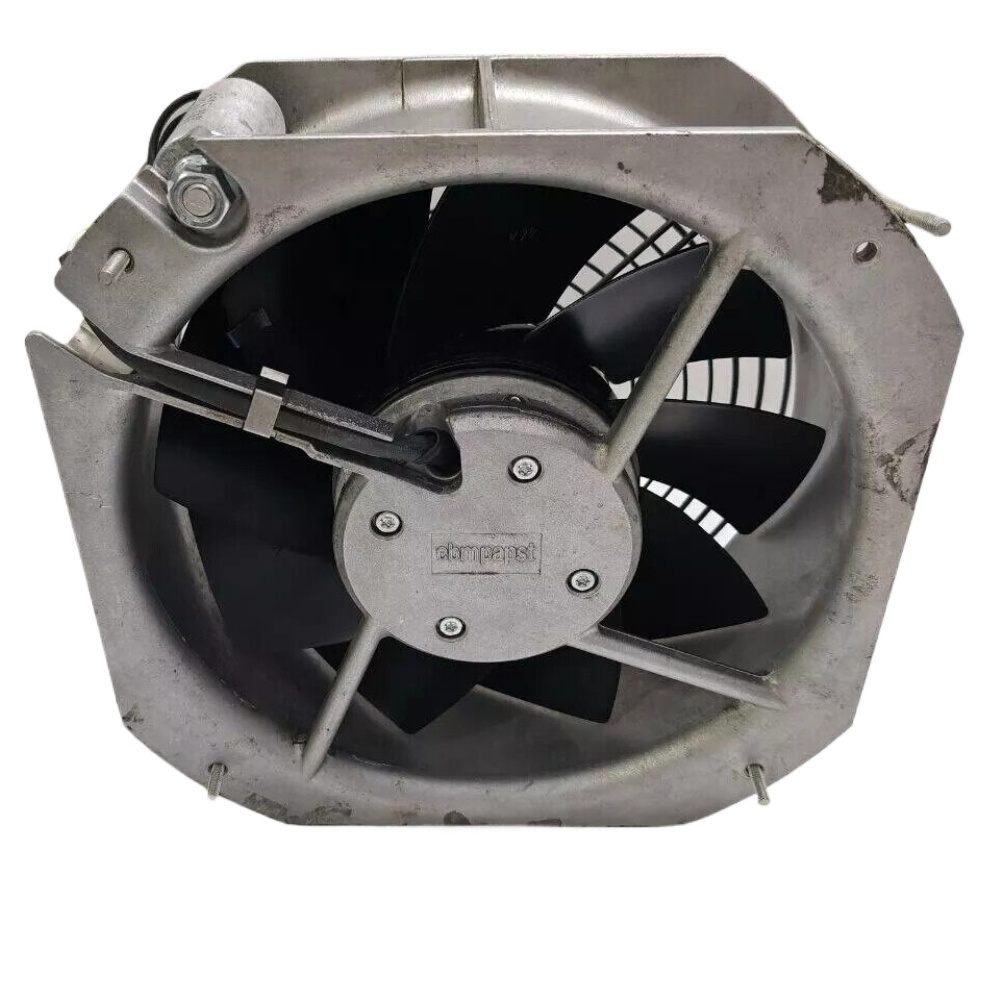

Ebm-papst W2E200-HK38-06 Axial Fan 225mm 230VAC High Performance Robust Design
$107.10
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst W2E200-HK38-06 Axial Fan 225mm 230VAC High Performance Robust Design
Full Specifications:
– Fan Type: Axial
– Model: W2E200-HK38-06
– Manufacturer: Ebm-papst
– Size: 225mm
– Voltage: 230VAC
– Frequency: 50/60 Hz
– Power Consumption: 65W (at 50Hz), 70W (at 60Hz)
– Current Draw: 0.28A (at 50Hz), 0.29A (at 60Hz)
– Speed: 2450 RPM (at 50Hz), 2650 RPM (at 60Hz)
– Air Flow: 775 m³/h (at 50Hz), 890 m³/h (at 60Hz)
– Noise Level: 68 dB(A)
– Bearing Type: Ball
– Motor: External rotor shaded-pole motor
– Protection Class: IP44
– Direction of Rotation: Counter-clockwise, seen on rotor
– Material: Die-cast aluminum housing; Sheet steel impeller
– Weight: 2.3 kg
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Insulation Class: F
– Ambient Temperature Range: -20°C to +70°C
– Approval: VDE, CSA, UL, CE
Key Features:
– High-performance operation for demanding applications
– Robust design with die-cast aluminum housing and sheet steel impeller
– Efficient energy consumption with low power input
– High air flow rate suitable for cooling and ventilation purposes
– Durable ball bearing for long service life
– External rotor motor design for compact and space-saving installation
– Protection against environmental factors with IP44 rating
– Compliance with international standards (VDE, CSA, UL, CE)
– Easy to connect with flat-pin connectors
– Suitable for continuous operation
Models Suitability:
The Ebm-papst W2E200-HK38-06 Axial Fan is suitable for a wide range of applications including but not limited to:
– Industrial cooling systems
– Ventilation systems for machinery and equipment
– Electronic cabinet cooling
– Heat exchangers
– Air conditioning units
– Refrigeration systems
– Welding equipment cooling
– Renewable energy systems such as solar inverters or wind turbines
– Automotive applications requiring robust and high-performance cooling solutions
