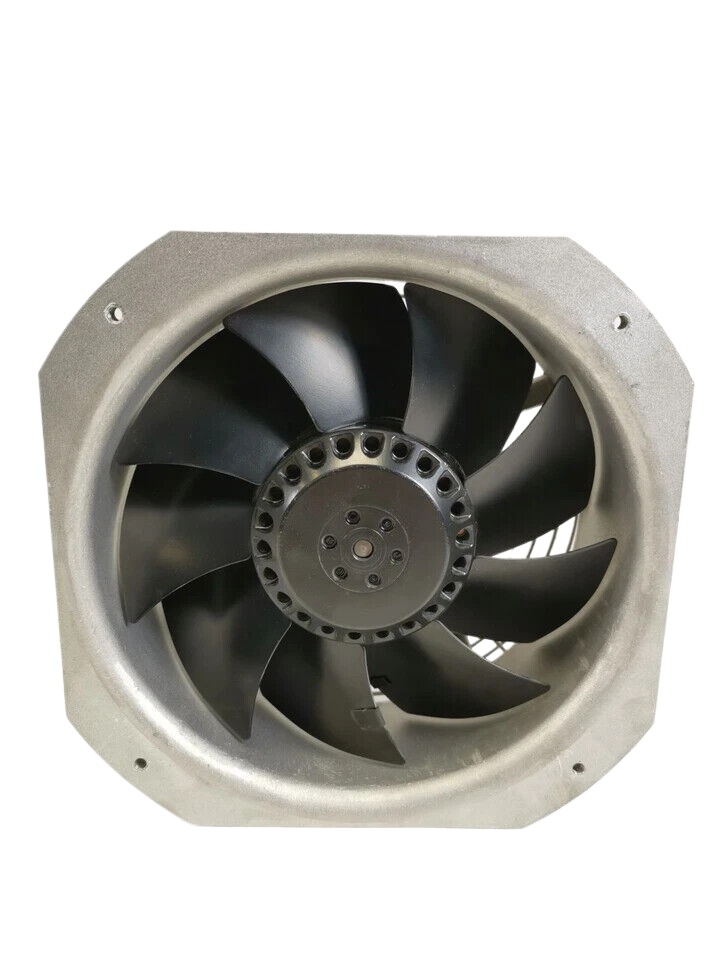

Ebm-papst W2E200-HH38-07 Axial Fan 225mm 230VAC High Performance Robust Design

Product: Ebm-papst W2E200-HH38-07 Axial Fan 225mm 230VAC High Performance Robust Design

Full Specifications:
– Model: W2E200-HH38-07
– Manufacturer: Ebm-papst
– Fan Type: Axial
– Size / Dimension: 225mm (Diameter)
– Voltage Rating: 230 VAC
– Frequency: 50/60 Hz
– Power Rating: 65 W
– Current Type: AC
– Air Flow: 910 cubic meters per hour
– Speed: 2550 RPM at 50 Hz, 2750 RPM at 60 Hz
– Noise Level: 68 dB(A)
– Bearing Type: Ball
– Material: Die-cast aluminum housing; Sheet steel impeller
– Protection Class: IP44
– Insulation Class: F
– Operating Temperature: -20°C to +70°C
– Weight: 2.5 kg
– Connection: Terminal block with clamp connector which can be assembled in 2 positions for cable exit
– Compliance: CE, UL, CSA, VDE approved; RoHS compliant
– Mounting Position: Any
– Expected Life: L10 life expectancy of 55,000 hours at 40°C

Key Features:
– High-performance motor ensuring efficient cooling and ventilation
– Robust design suitable for demanding applications
– Energy-efficient operation with low power consumption
– Compact and durable construction with high-quality materials
– Easy to install with versatile mounting options
– Maintenance-free ball bearings for long service life
– Thermal overload protector for safe operation
– Aerodynamically optimized impeller for high airflow with minimal noise

Models Suitability:
– Industrial cooling systems
– Electronic cabinet cooling
– Welding machines
– Woodworking machinery
– Solar inverters
– Heat exchangers
– Food and beverage cooling applications
– HVAC systems in commercial and industrial settings
– Ventilation for machinery and equipment
– Automotive industry applications requiring robust cooling solutions
