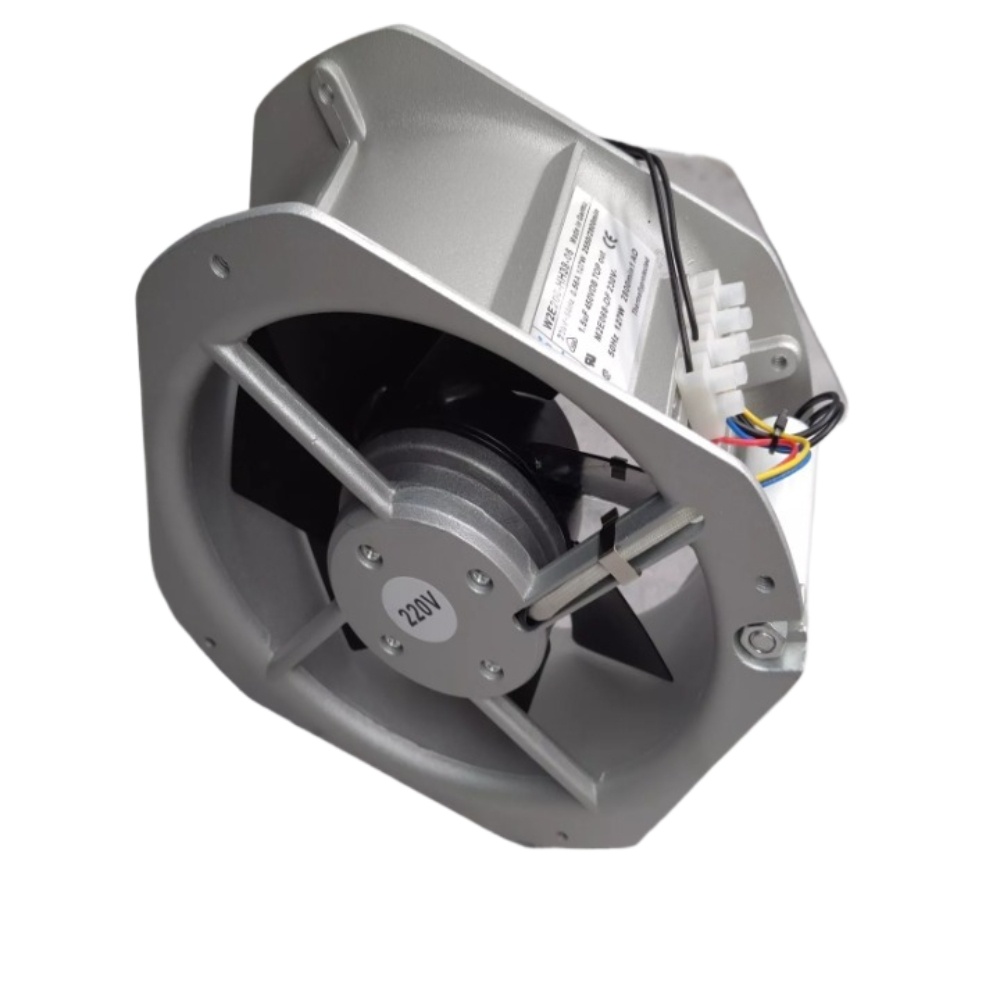

Ebm-papst W2E200-HH38-06 Axial Fan 225mm 230VAC High Performance Robust Design
$105.53
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst W2E200-HH38-06 Axial Fan 225mm 230VAC High Performance Robust Design
Full Specifications:
– Fan Type: Axial
– Model: W2E200-HH38-06
– Manufacturer: Ebm-papst
– Size/Diameter: 225 mm
– Voltage: 230 VAC
– Frequency: 50/60 Hz
– Power Consumption: 65 W
– Current: 0.56 A
– Speed: 2550 RPM (max)
– Air Flow: 910 m³/h (max)
– Noise Level: 68 dB(A)
– Bearing Type: Ball
– Motor: External rotor shaded-pole motor
– Direction of Rotation: Clockwise, seen on rotor
– Material: Die-cast aluminum housing; Sheet steel impeller
– Protection Class: IP44
– Insulation Class: F
– Mounting Position: Any
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Weight: 2.3 kg
– Operating Temperature Range: -20°C to +70°C
– Approval: VDE, CSA, UL, CE
– Life Expectancy: L10 life of 55,000 h at 40°C
Key Features:
– High-performance operation with robust design suitable for demanding applications
– Energy-efficient motor design reduces power consumption
– Compact and versatile for easy integration into various systems
– Low noise emission for operation in noise-sensitive environments
– Maintenance-free ball bearings ensure long service life
– Equipped with thermal overload protector for safety and longevity
– Corrosion-resistant materials for durability in harsh conditions
– Simple electrical connection with flat-pin connectors for quick installation
– Compliant with international standards and certifications for global use
Models Suitability:
The Ebm-papst W2E200-HH38-06 Axial Fan is suitable for a wide range of applications including but not limited to:
– Ventilation systems
– Heat exchangers
– Air conditioning units
– Electronic cooling systems
– Machinery cooling
– Industrial control cabinets
– Refrigeration plants
– Welding equipment
This model is particularly well-suited for scenarios requiring high airflow and reliability in both commercial and industrial settings. Its robust design and high-quality construction make it an ideal choice for continuous operation in challenging environments.
