Ebm-papst W2E200-HH38-05 Axial Fan 225mm 230VAC High Performance Ball Bearing

Product: Ebm-papst W2E200-HH38-05 Axial Fan 225mm 230VAC High Performance Ball Bearing

Full Specifications:
– Fan Type: Axial
– Size / Dimension: 225mm (Diameter)
– Voltage: 230 VAC

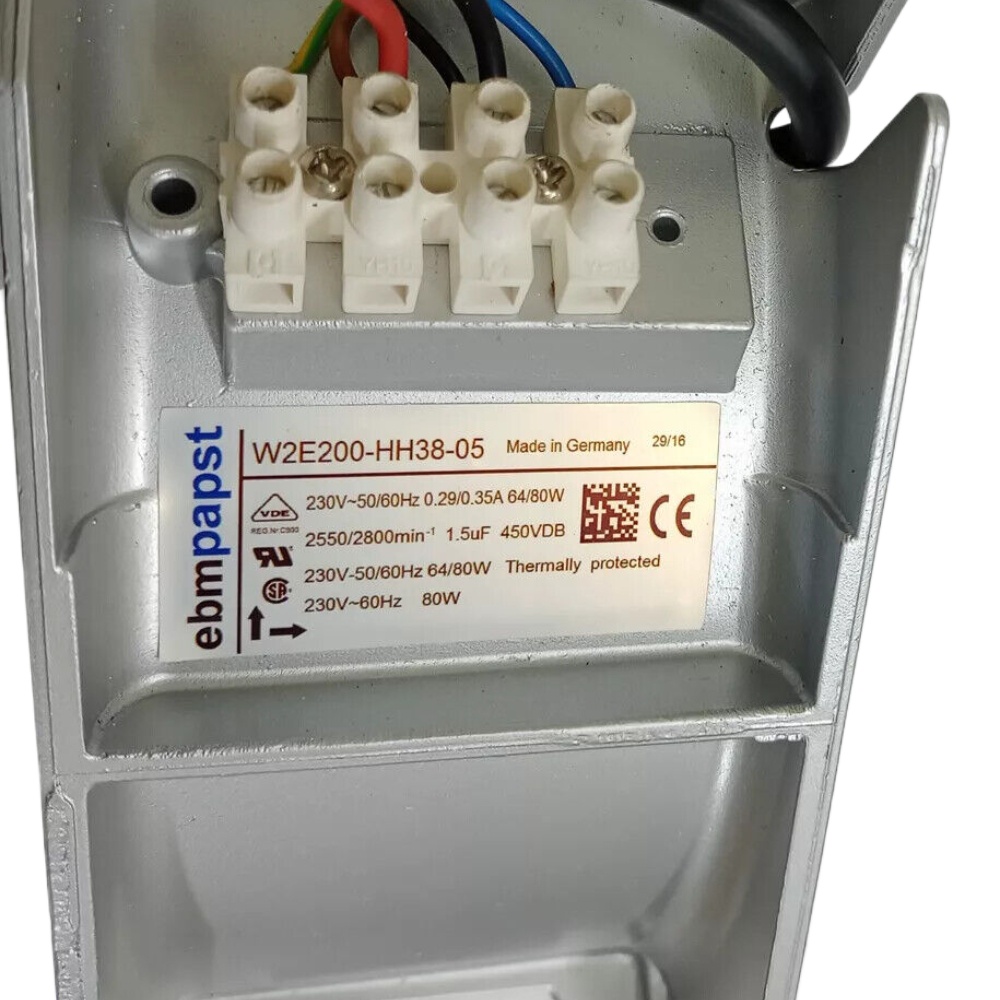

– Power Connection Type: Terminal Block
– Bearing Type: Ball
– Performance Type: High Performance
– Air Flow: 775 CFM (Cubic Feet per Minute)
– Speed: 2650 RPM (Revolutions per Minute)
– Noise Level: 68 dB(A)
– Power Rating: 65 W (Watts)
– Current Type: AC
– Frequency: 50/60 Hz
– Weight: 2.3 kg
– Material: Die-cast aluminum housing; Sheet steel impeller
– Protection Class: IP44
– Insulation Class: F
– Operating Temperature Range: -20°C to +70°C
– Approval: VDE, CSA, UL, CE
– Cable Length: 500 mm
– Lifetime @ 40°C: 55,000 h

Key Features:
– Robust and durable construction with die-cast aluminum housing and sheet steel impeller.
– High airflow performance with an impressive 775 CFM, ensuring effective cooling and ventilation.
– Efficient ball bearing system, providing a long operational lifespan of 55,000 hours at 40°C.
– Versatile power connection via terminal block for easy installation and maintenance.
– Low energy consumption with a power rating of just 65 W, contributing to energy savings.
– Multi-speed capability with a high rotational speed of 2650 RPM for increased airflow.
– Quiet operation with a noise level of 68 dB(A), suitable for environments where noise is a concern.
– Protection against ingress of solid objects and splashing water with an IP44 rating.
– Compliance with international standards, including VDE, CSA, UL, and CE certifications.

Model Suitability:
– Industrial cooling systems
– Electronic cabinet cooling
– Ventilation systems for machinery
– HVAC applications in commercial and industrial settings
– Heat exchangers
– Welding equipment cooling
– Renewable energy systems such as solar inverters and wind turbines
– Automotive applications including engine and brake cooling systems
