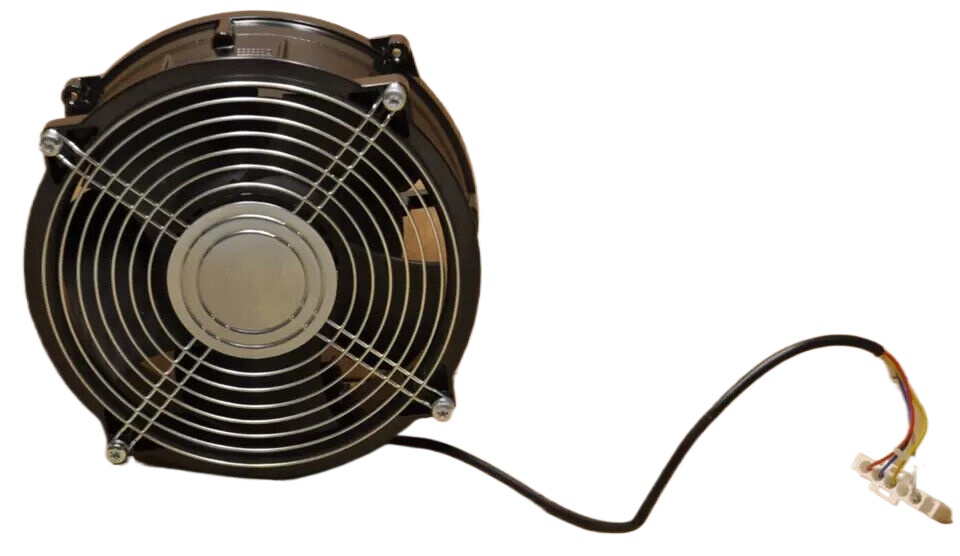

Ebm-papst W1G180-AB31-01 Axial Fan 180mm 24VDC High Performance Energy Saving

Product: Ebm-papst W1G180-AB31-01 Axial Fan 180mm 24VDC High Performance Energy Saving

Full Specifications:
– Nominal voltage: 24VDC
– Size: 180mm diameter
– Nominal speed range: Up to 2500 RPM
– Airflow: Up to 700 cubic meters per hour
– Noise level: Maximum 65 dB(A)
– Power input: Approx. 170W
– Current draw: Up to 7.1A
– Ambient temperature range: -20°C to +70°C
– Housing material: Fiberglass-reinforced plastic
– Blade material: Sheet steel, coated
– Bearing type: Ball bearings
– Protection class: IP54
– Weight: 2.0 kg
– Connection: Stranded wires
– Motor protection: Locked-rotor and reverse polarity protection

Key Features:
– GreenTech EC technology for high efficiency and energy saving
– Compact design for space-saving installation
– Robust and durable construction for long service life
– Variable speed control via analog or PWM signal
– Low noise emission for quiet operation
– Maintenance-free ball bearings for reliable performance
– Intelligent electronics for optimal operational safety
– Aerodynamically optimized blade design for high airflow and pressure
– Integrated electronic protection features to prevent damage

Models Suitability:
– Suitable for a wide range of cooling and ventilation applications, including but not limited to:
– Industrial automation and control cabinets
– Telecommunications equipment
– Automotive battery cooling systems
– Renewable energy systems (e.g., solar inverters, wind turbines)
– HVAC systems in residential, commercial, and industrial settings
– Electronic equipment cooling (servers, workstations, networking hardware)
– Medical devices requiring reliable thermal management
– Compatible with various control systems for speed regulation and monitoring
– Ideal for applications where energy efficiency and low noise operation are critical
