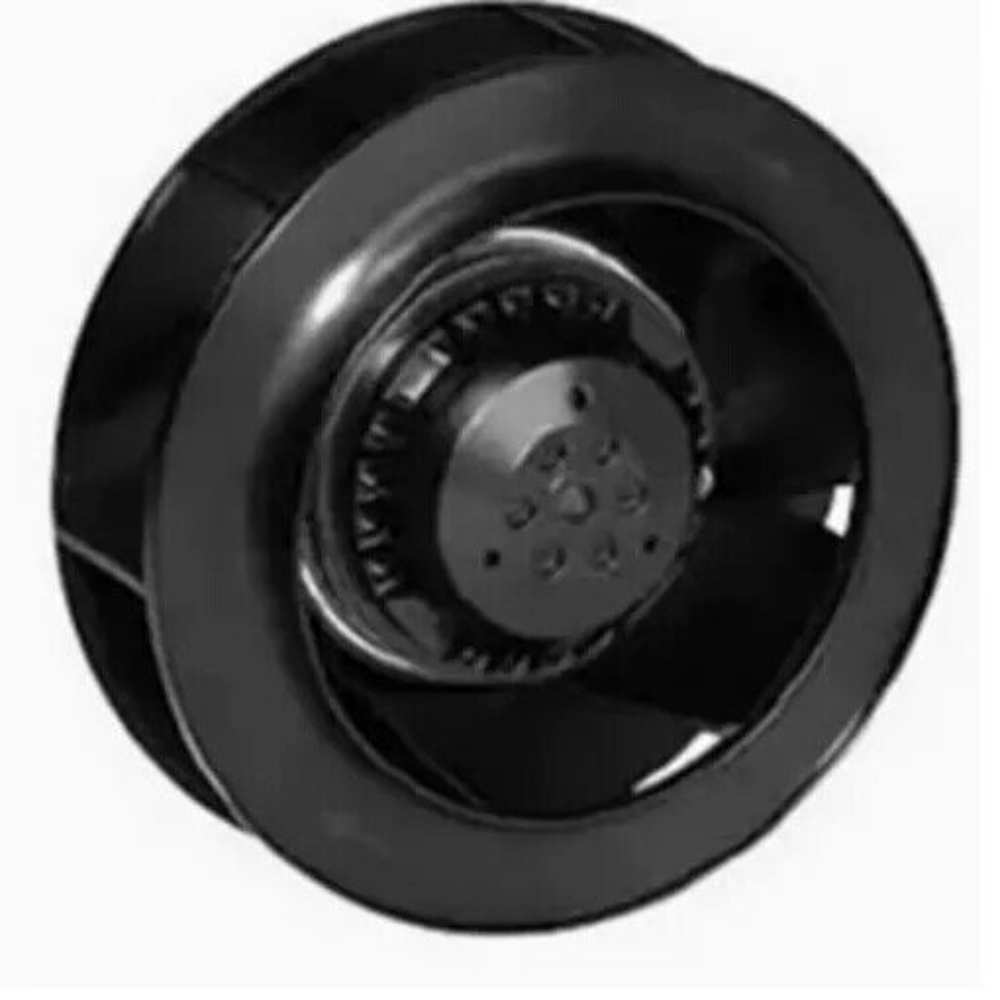

Ebm-papst R2E220-AD19-11 Centrifugal Fan 220mm 115VAC High Performance Dual Ball Bearing

Product: Ebm-papst R2E220-AD19-11 Centrifugal Fan 220mm 115VAC High Performance Dual Ball Bearing

Specifications:
– Nominal Voltage: 115 VAC
– Frequency: 50/60 Hz
– Power Input: 170 W
– Speed: Max 2550 RPM
– Air Flow: 760 m³/h
– Noise Level: 68 dB(A)
– Weight: 2.5 kg
– Impeller Material: Sheet steel, coated in black
– Housing Material: Die-cast aluminum
– Motor Protection: Thermal overload protector (TOP) wired internally
– Insulation Class: Class F
– Degree of Protection: IP44
– Direction of Rotation: Clockwise, seen on rotor
– Type of Protection: S1
– Bearing Type: Dual ball bearings
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Cable Length: Approx. 500 mm
– Temperature Range: -25°C to +55°C
– Approval: UL, CSA, CE
– Model: R2E220-AD19-11

Key Features:
– High-performance centrifugal fan with backward-curved blades
– Dual ball bearing design for extended service life
– Integrated motor with high efficiency and low energy consumption
– Compact and robust construction for versatile installation
– Aerodynamically optimized impeller for maximum airflow and minimal noise
– Speed-controllable via external input to adapt to varying operational conditions
– Maintenance-free and reliable operation due to high-quality components
– Suitable for continuous operation (S1)
– Easy electrical connection with flat-pin connectors

Models Suitability:
The Ebm-papst R2E220-AD19-11 Centrifugal Fan is suitable for a wide range of applications where reliable and efficient air movement is required. These include but are not limited to:
– Ventilation systems
– Air-conditioning units
– Heat exchangers
– Industrial cooling systems
– Electronic equipment cooling
– Clean room modules
– Commercial kitchen exhaust
– Automotive industry applications
– Medical equipment cooling

This model is particularly well-suited for environments that demand high airflow and reliability, while also needing to maintain low noise levels and energy efficiency.
