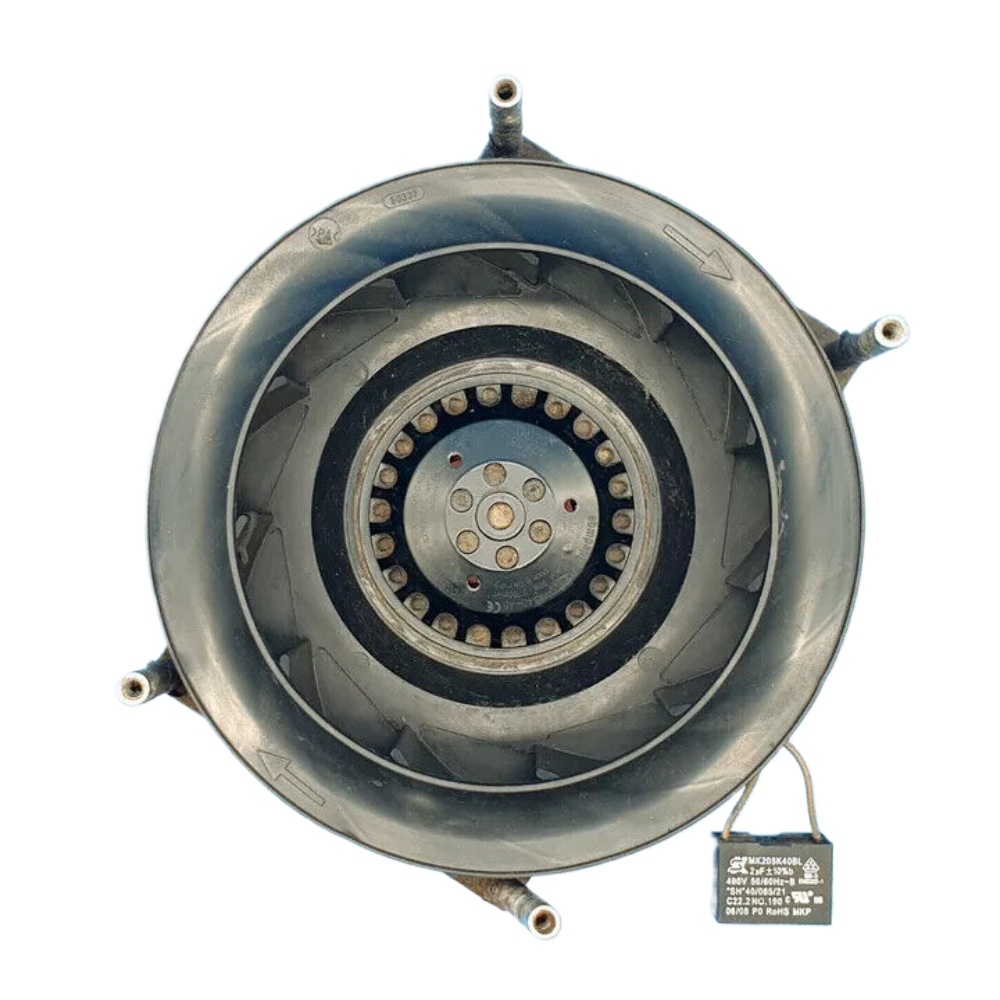

Ebm-papst R2E220-AA40-A8 Centrifugal Fan 220mm 115VAC High Performance Ball Bearing
$351.71
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst R2E220-AA40-A8 Centrifugal Fan 220mm 115VAC High Performance Ball Bearing
Full Specifications:
– Nominal Voltage: 115 VAC
– Frequency: 50/60 Hz
– Nominal Speed: 2550/3100 min⁻¹
– Power Input: 170 W
– Current Draw: 1.50/1.80 A
– Max Back Pressure: 200 Pa
– Air Flow: 700/800 m³/h
– Fan Diameter: 220 mm
– Connection: 2 flat plugs 2.8 x 0.5 mm
– Capacitor Voltage: 2 x 250 VAC
– Motor Protection: Thermal overload protector (TOP) connected to internal winding
– Direction of Air Flow: “V” (exhaust over struts)
– Direction of Rotation: Right, seen on rotor
– Type of Protection: IP44
– Insulation Class: “B”
– Mode of Operation: Continuous operation (S1)
– Bearing Type: Ball bearing
– Mass: 2.5 kg
– Sound Pressure Level: 65 dB(A)
– Housing Material: Aluminum
– Impeller Material: Galvanized steel
– Approval: UL, CSA, VDE, CE
– Ambient Temperature: -25°C to +55°C
Key Features:
– Forward-curved centrifugal fan design for high air performance
– High-performance ball bearings ensure long service life and reliability
– Compact and robust aluminum housing for durability and corrosion resistance
– Galvanized steel impeller for enhanced stability and reduced noise
– Integrated thermal overload protection for motor safety
– Efficient energy consumption due to optimized aerodynamic design
– Suitable for continuous operation with minimal maintenance requirements
– Easy installation with flat plug connectors
– Compliant with international standards and certifications for global use
Models Suitability:
The Ebm-papst R2E220-AA40-A8 Centrifugal Fan is suitable for a wide range of applications that require reliable and efficient air movement. These include but are not limited to:
– Ventilation systems
– Air-conditioning units
– Heat exchangers
– Industrial cooling systems
– Electronics cooling
– Cabinet cooling
– Clean room modules
– Commercial kitchen exhaust
– Medical appliances
– Automotive industry applications
– HVAC systems in both residential and commercial settings
