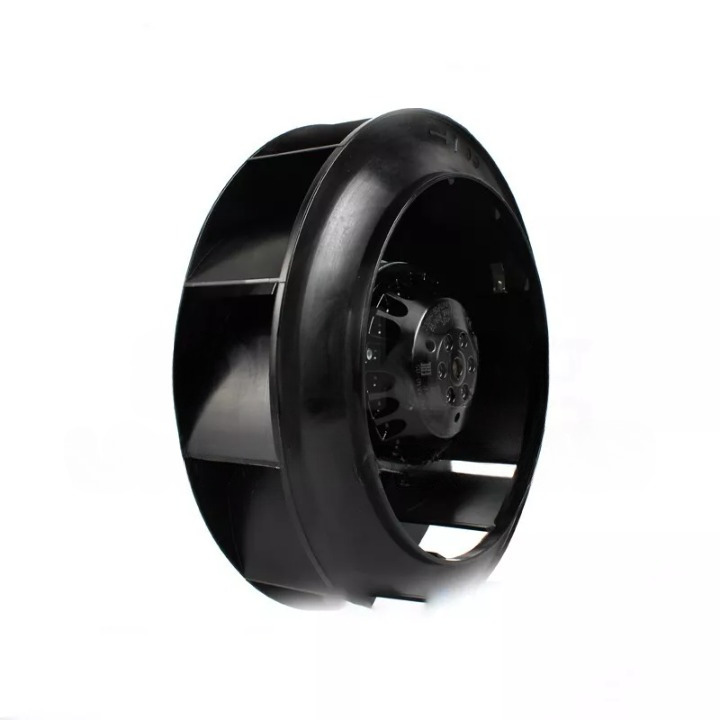

Ebm-papst R2E220-AA40-25 Centrifugal Fan 220mm 115VAC High Performance Ball Bearing

Product: Ebm-papst R2E220-AA40-25 Centrifugal Fan 220mm 115VAC High Performance Ball Bearing

Full Specifications:
– Nominal Voltage: 115 VAC
– Frequency: 50/60 Hz
– Nominal Speed: 2550/3100 min^-1
– Power Input: 170/215 W
– Current Draw: 1.50/1.80 A
– Maximum Air Flow: 760/900 m³/h
– Fan Diameter: 220 mm
– Direction of Rotation: Clockwise, seen on rotor
– Capacitor Voltage: 2 x 250 VAC
– Motor Protection: Thermal overload protector (TOP) connected in series with motor winding
– Insulation Class: B
– Type of Protection: IP44
– Bearing Type: Ball bearings
– Housing Material: Aluminum
– Impeller Material: Sheet steel, coated in black
– Weight: 2.8 kg
– Connection: Stripped wires
– Ambient Temperature Range: -25°C to +55°C
– Approval: VDE, CSA, UL, CE

Key Features:
– Forward-curved centrifugal fan design for high air performance
– Compact size for easy integration into various applications
– Energy-efficient motor design reduces power consumption
– High-performance ball bearings ensure long service life and reliability
– Speed-controllable via external input to adapt to system requirements
– Low noise emission for operation in noise-sensitive environments
– Robust construction with high-quality materials for durability in harsh conditions
– Integrated thermal overload protection for motor safety

Models Suitability:
– Suitable for a wide range of applications including electronics cooling, HVAC systems, air conditioning units, heating systems, and ventilation systems.
– Ideal for use in industrial machinery and process cooling where high airflow and reliability are critical.
– Can be used in commercial settings such as server rooms, data centers, and telecom equipment where consistent cooling is necessary.
– Appropriate for medical equipment cooling where precision and dependability are paramount.
– Also applicable in automotive and transportation industry applications requiring robust and efficient thermal management solutions.
