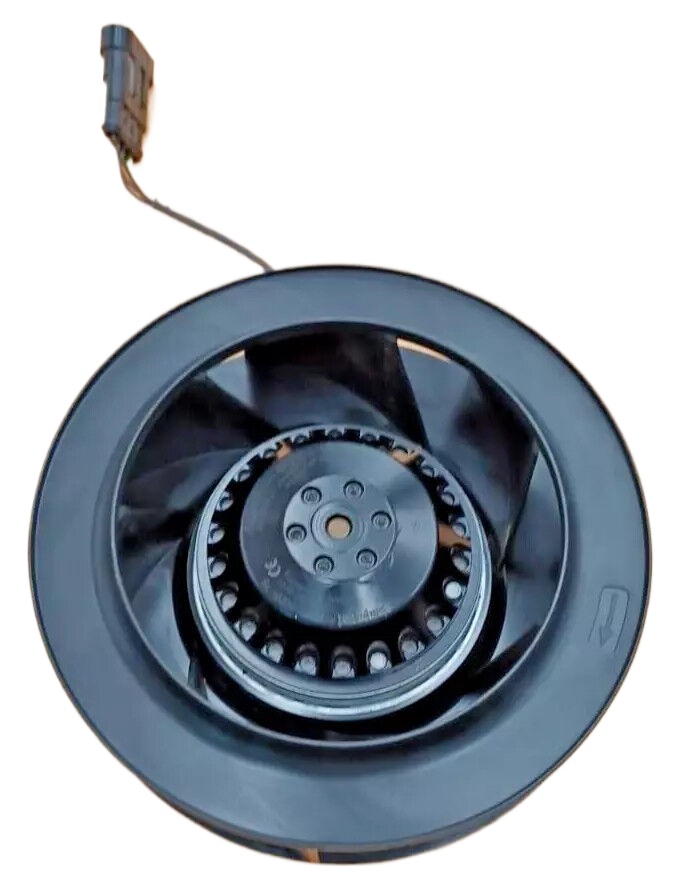

Ebm-papst R2E190-A026-76 Centrifugal Fan 190mm 230VAC High Performance Ball Bearing
$120.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst R2E190-A026-76 Centrifugal Fan 190mm 230VAC High Performance Ball Bearing
Specifications:
– Diameter: 190mm
– Voltage: 230VAC
– Frequency: 50/60Hz
– Current: 1.40/1.60A
– Power Input: 250/280W
– Speed: 2550/2750 min-1
– Max. Air Flow: 485/560 m³/h
– Max. Static Pressure: 450/530 Pa
– Noise Level: 72/75 dB(A)
– Weight: 2.8 kg
– Motor Type: EC (Electronically Commutated)
– Direction of Rotation: Clockwise, seen on rotor
– Type of Protection: IP44
– Insulation Class: F
– Ambient Temperature: -25°C to +60°C
– Housing Material: Aluminum
– Impeller Material: Galvanized Steel
– Connection: 2 flat plugs 2.8 x 0.5 mm
– Ball Bearing: High-performance, maintenance-free
– Approval: VDE, UL, CSA
– Control Input: 0-10V/PWM
– Lifetime L10 at 40°C: 65,000 h
Key Features:
– Forward-curved centrifugal fan design for high air performance
– EC motor technology ensuring high efficiency and energy savings
– Compact and robust construction for versatile integration
– Low noise emission for quiet operation
– Speed-controllable via external input for flexible system integration
– Thermal overload protector for motor protection
– Maintenance-free ball bearings for long service life
– Easy electrical connection with flat plug connectors
– Suitable for continuous operation (S1)
– Dynamic balancing according to quality grade G2.5, DIN ISO 1940
Models Suitability:
– HVAC systems (Heating, Ventilation, and Air Conditioning)
– Electronic cooling systems
– Heat pumps
– Air purifiers and filtration units
– Residential and commercial ventilation systems
– Industrial cooling and exhaust systems
– Server and telecommunications equipment cooling
– Medical equipment cooling
– Automotive and rail vehicle air conditioning systems
– Energy recovery and air handling units
