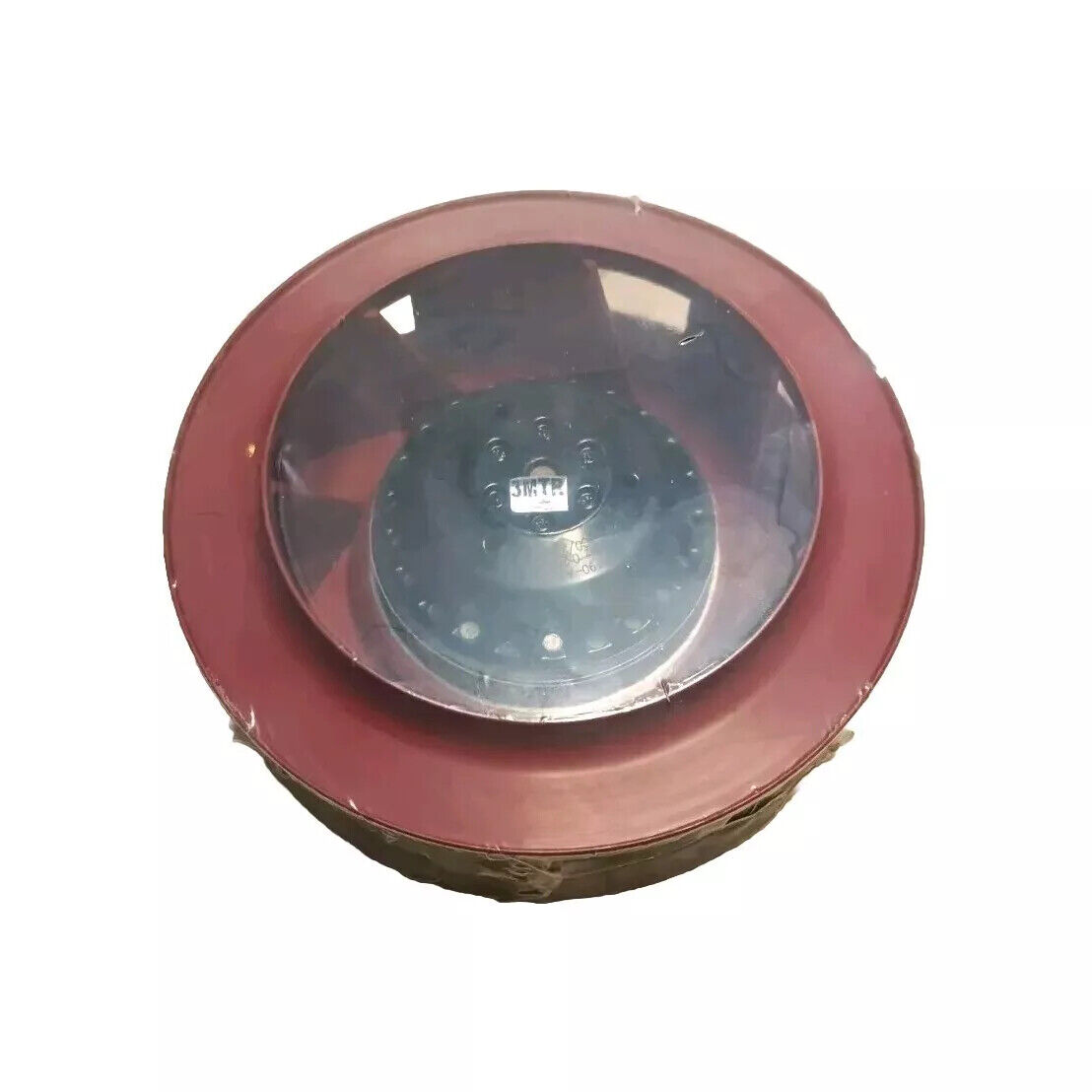

Ebm-papst R2E190-A026-44 Centrifugal Fan 190mm 230VAC High Performance Maintenance-free
$121.29
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst R2E190-A026-44 Centrifugal Fan 190mm 230VAC High Performance Maintenance-free
Full Specifications:
– Nominal Voltage: 230 VAC
– Frequency: 50/60 Hz
– Nominal Speed: Approx. 2550/3100 min⁻¹
– Power Input: Approx. 170/215 W
– Current Draw: Approx. 0.74/0.92 A
– Max. Backward Pressure: 450 Pa
– Air Flow: Approx. 485/560 m³/h
– Fan Diameter: 190 mm
– Connection: 2 flat plugs 2.8 x 0.5 mm
– Capacitor Voltage: 400 VDB
– Capacitor Value: 2 µF
– Motor Protection: Thermal overload protector (TOP) connected in series with motor winding
– Insulation Class: “F”
– Mode of Operation: Continuous operation (S1)
– Mounting Position: Any
– Condensate Discharge Holes: None
– Mass: Approx. 2.5 kg
– Sound Pressure Level: Approx. 65 dB(A)
– Protection Class: I (with ground)
– Direction of Air Flow: “V” (exhaust over struts)
– Direction of Rotation: Right, seen on rotor
– Type of Protection: IP44
– Approval: VDE, CSA, UL, CE
– Material: Housing – Galvanized steel; Impeller – Plastic PA6.6, fiberglass-reinforced
– Motor: External rotor shaded-pole motor with maintenance-free ball bearing
– Temperature Range: -25°C to +60°C
Key Features:
– High-performance centrifugal fan with backward-curved blades
– Maintenance-free ball bearing for long service life
– Compact and robust design
– Low noise emission due to aerodynamically optimized impeller
– High efficiency and excellent airflow characteristics
– Integrated thermal overload protection for safety and durability
– Versatile mounting options for flexible installation
– Suitable for a wide range of applications due to extensive approvals
Models Suitability:
The Ebm-papst R2E190-A026-44 Centrifugal Fan is suitable for a variety of applications including, but not limited to:
– Ventilation systems
– Air-conditioning units
– Heat pumps
– Air heaters
– Cooling units for data centers and electronics
– Industrial cooling applications
– Exhaust systems for machinery or equipment
