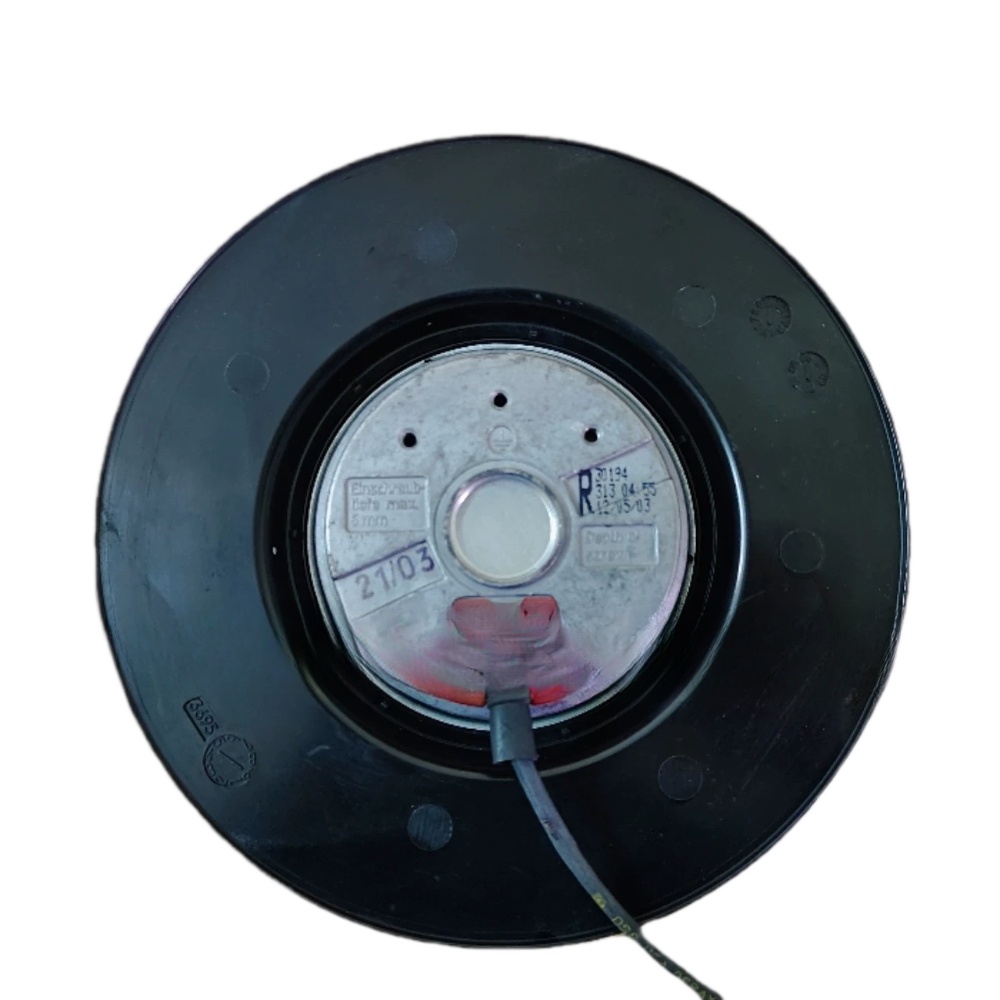

Ebm-papst R2E190-A026-25 Centrifugal Fan 190mm 115VAC High Performance Ball Bearing

Product: Ebm-papst R2E190-A026-25 Centrifugal Fan 190mm 115VAC High Performance Ball Bearing

Specifications:
– Nominal Voltage: 115 VAC
– Frequency: 50/60 Hz
– Nominal Speed: Approx. 2550/3100 min⁻¹
– Power Input: 215 W
– Current Draw: 1.9 A
– Max. Back Pressure: 280 Pa
– Air Flow: 485 m³/h
– Fan Diameter: 190 mm
– Connection: 2 flat plugs 2.8 x 0.5 mm
– Capacitor Voltage: 2 µF / 400 VAC
– Motor Protection: Thermal overload protector (TOP) connected in series with motor winding
– Insulation Class: “B”
– Mass: 2.5 kg
– Sound Pressure Level: 68 dB(A)
– Direction of Rotation: Clockwise, seen on rotor
– Type of Protection: IP44
– Bearing Type: Ball bearing
– Housing Material: Galvanized steel
– Impeller Material: Plastic, PA 6.6 fiberglass-reinforced
– Operating Temperature Range: -25°C to +60°C
– Approval: UL, CSA, VDE, CE
– Mounting Position: Any
– Lifetime L10 at 40°C: 55000 h

Key Features:
– High-performance ball bearings ensure long service life and reliability.
– Robust and durable galvanized steel housing withstands demanding operating conditions.
– The aerodynamic impeller design maximizes airflow and efficiency.
– Integrated thermal overload protection safeguards the motor from overheating.
– Versatile mounting options accommodate various installation requirements.
– The fan operates quietly with a low sound pressure level, minimizing noise pollution.
– IP44 protection rating indicates a level of protection against solid objects and splashing water.
– Compliance with international standards, including UL, CSA, VDE, and CE, ensures quality and safety.

Models Suitability:
The Ebm-papst R2E190-A026-25 Centrifugal Fan is suitable for a wide range of applications that require reliable and efficient air movement. These include but are not limited to:
– Ventilation systems
– Air-conditioning units
– Heat pumps
– Air heaters
– Cooling units for machinery and electronics
– Exhaust systems
– Industrial cooling processes
