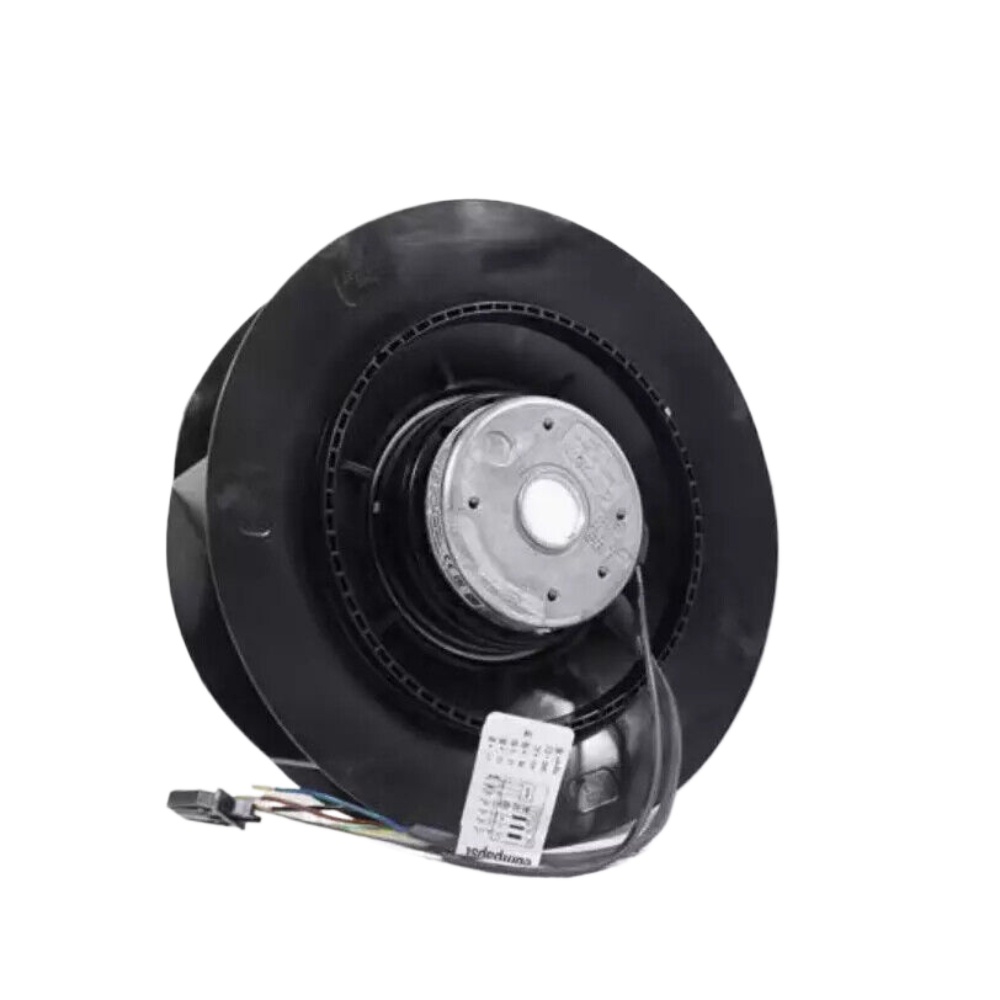

Ebm-papst R2D225-RA26-20 Centrifugal Fan 225mm 230VAC High Performance Dual Inlet

Product: Ebm-papst R2D225-RA26-20 Centrifugal Fan 225mm 230VAC High Performance Dual Inlet

Full Specifications:
– Nominal Voltage: 230 VAC
– Frequency: 50/60 Hz
– Speed: Max 2550 RPM
– Power Input: 170 W
– Current Draw: 0.74 A
– Maximum Air Flow: 1040 m³/h
– Fan Diameter: 225 mm
– Direction of Rotation: Clockwise, seen on rotor
– Capacitor Voltage: 400 V
– Weight: 4.0 kg
– Sound Pressure Level: 68 dB(A)
– Temperature Range: -25°C to +60°C
– Housing Material: Aluminum
– Impeller Material: Sheet steel, coated in black
– Motor Protection: Thermal contacts
– Insulation Class: F
– Protection Class: IP54
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Mounting Position: Any
– Conformity: CE, UL, CSA, EAC, CCC, RoHS, WEEE
– ERP Compliant: Yes

Key Features:
– Dual inlet design for high air performance efficiency
– Compact and robust construction for easy integration into various applications
– Maintenance-free ball bearings for long service life
– Speed-controllable via external input to adapt to system requirements
– Low noise emission for use in noise-sensitive environments
– Integrated thermal contacts for motor protection to ensure safety and longevity
– Energy-efficient operation to reduce overall energy consumption
– Advanced aerodynamic design for optimal airflow and pressure characteristics

Models Suitability:
The Ebm-papst R2D225-RA26-20 Centrifugal Fan is suitable for a wide range of applications including, but not limited to:
– Ventilation systems for commercial and industrial buildings
– Air conditioning units
– Heat exchangers
– Air handling units
– Electronic cooling systems
– Cleanroom modules
– Data center cooling
– Automotive industry applications
– Rail technology ventilation
– Medical equipment cooling

This fan is designed to meet the needs of systems requiring high airflow and pressure capabilities, with the added benefit of dual inlet efficiency and the reliability of the Ebm-papst brand.
