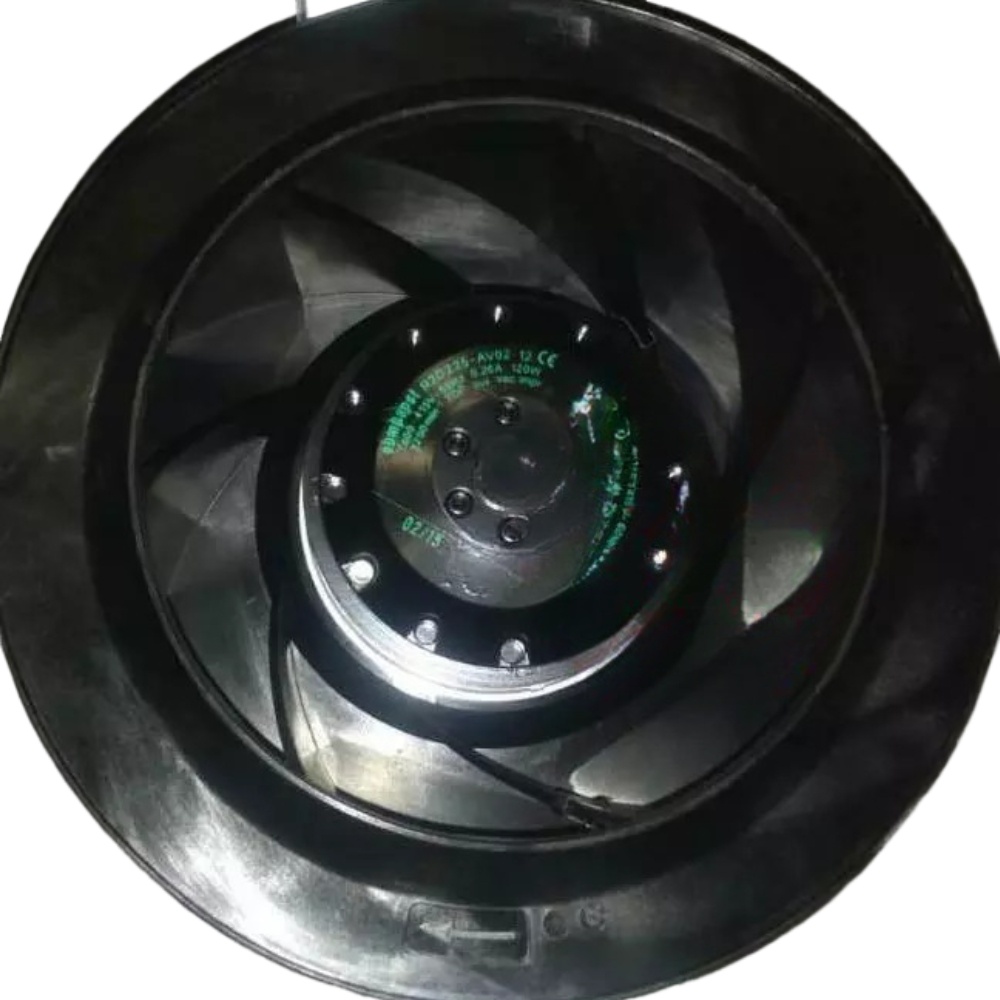

Product: Ebm-papst R2D220-AB02-10 Centrifugal Fan 220mm 230VAC High Performance Dual Ball Bearing
Specifications:
– Nominal Voltage: 230 VAC
– Frequency: 50/60 Hz
– Nominal Speed: 2550/3100 min⁻¹
– Power Input: 170/215 W
– Current Draw: 0.74/0.92 A
– Max Back Pressure: 200 Pa
– Air Flow: 900/1080 m³/h
– Fan Diameter: 220 mm
– Connection: Terminal leads
– Capacitor Voltage: 400 VDB
– Capacitor Size: 4 µF
– Motor Protection: Thermal overload protector (TOP) connected to internal winding
– Direction of Rotation: Clockwise, seen on rotor
– Mass: 2.8 kg
– Sound Pressure Level (at 1 m): 65 dB(A)
– Insulation Class: F
– Protection Class: IP44
– Ambient Temperature: -25°C to +55°C
– Housing Material: Die-cast aluminum
– Impeller Material: Sheet steel, coated in black
– Approval: CE, UL, CSA, EAC, CCC, WEEE
Key Features:
– High-performance dual ball bearing system for reliability and longevity
– Forward-curved impeller design for efficient airflow and pressure generation
– Compact and robust construction suitable for demanding applications
– Speed-controllable via external input to adapt to varying system requirements
– Maintenance-free design for continuous operation
– Integrated thermal overload protection for motor safety
– Low noise emission for use in noise-sensitive environments
– Energy-efficient motor design to reduce operational costs
– Easy installation with terminal leads connection
Model Suitability:
– Suitable for a wide range of applications including electronics cooling, HVAC systems, heat exchangers, air curtains, and industrial cooling processes.
– Ideal for use in equipment requiring high air performance and pressure stability such as IT and telecom equipment, medical devices, packaging machines, and food and beverage industry machinery.
– Can be deployed in both intake and exhaust configurations for versatile system integration.
– Appropriate for retrofitting or upgrading existing systems due to its standard dimensions and high compatibility with various control systems.
