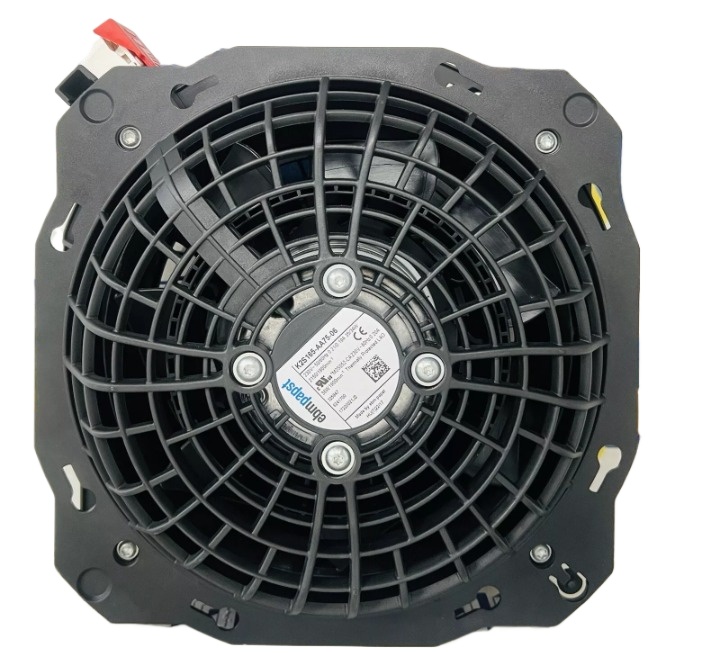

Ebm-papst K2S165-AA75-06 Axial Fan 230VAC High Performance Ball Bearing Robust Design

Product: Ebm-papst K2S165-AA75-06 Axial Fan 230VAC High Performance Ball Bearing Robust Design

Full Specifications:
– Voltage: 230 VAC
– Frequency: 50/60 Hz
– Power Input: 170W
– Current Draw: 0.74 A
– Speed: 2650 RPM (at 50 Hz), 3180 RPM (at 60 Hz)
– Air Flow: 485 CFM (at 50 Hz), 560 CFM (at 60 Hz)
– Noise Level: 72 dB(A)
– Temperature Range: -20°C to +70°C
– Housing Material: Die-cast aluminum
– Blade Material: Sheet steel, coated in black
– Motor: External rotor shaded-pole motor
– Protection Class: IP54
– Insulation Class: F
– Mounting Position: Any
– Connection: 2 flat-pin connectors 2.8 x 0.5 mm
– Weight: 2.8 kg
– Certification: VDE, CSA, UL, CE

Key Features:
– High-performance ball bearing system for extended service life and durability
– Robust design with die-cast aluminum housing and sheet steel blades for industrial-grade applications
– External rotor motor design for compact size and high power density
– High airflow and static pressure capabilities for demanding cooling requirements
– Low noise emission for use in noise-sensitive environments
– Versatile mounting options to accommodate various installation positions
– Thermal overload protection for motor safety and longevity
– Resistant to harsh environmental conditions, suitable for a wide temperature range
– Easy to connect with flat-pin connectors for quick installation
– Compliance with international standards and certifications ensuring quality and safety

Model Suitability:
– Industrial cooling systems
– Ventilation systems for machinery and equipment
– Heat exchangers
– Electronic cabinet cooling
– Welding equipment cooling
– Renewable energy systems (e.g., solar inverters, wind turbines)
– HVAC applications in commercial and industrial settings
– Automotive industry applications requiring high-performance cooling
– Agricultural equipment requiring robust and reliable air movement solutions
