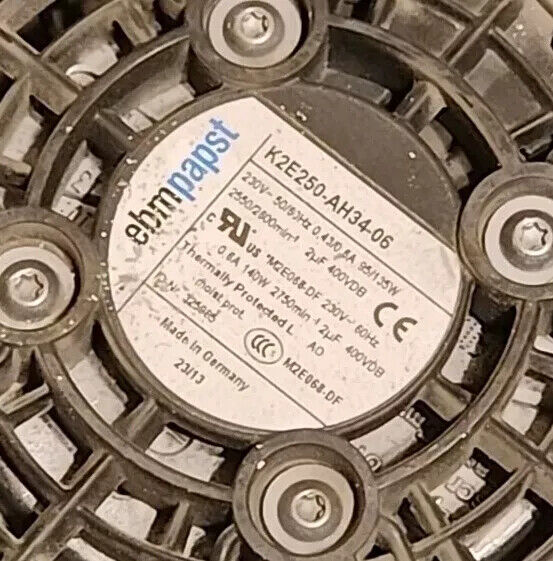

Ebm-papst K2E250-AH34-06 Axial Fan 250mm 230VAC High Performance External Rotor

Product: Ebm-papst K2E250-AH34-06 Axial Fan 250mm 230VAC High Performance External Rotor

Full Specifications:
– Nominal Voltage: 230 VAC
– Frequency: 50/60 Hz
– Nominal Speed: 2550/3100 min⁻¹
– Power Input: 190/205 W
– Current Draw: 0.85/0.92 A
– Max. Back Pressure: 200 Pa
– Air Flow: 1080 m³/h
– Fan Diameter: 250 mm
– Direction of Rotation: Clockwise, seen on rotor
– Capacitor Voltage: 400 VDB
– Motor Protection: Thermal overload protector (TOP) connected to internal winding
– Insulation Class: F
– Type of Protection: IP54
– Bearing Type: Ball bearings
– Housing Material: Die-cast aluminum
– Blade Material: Sheet steel, coated in black
– Weight: 3.8 kg
– Connection: Terminal box 2 x PG 13.5
– Cable Length: Approx. 500 mm
– Ambient Temperature Range: -25°C to +55°C
– Approval: CE, UL, CSA, EAC, CCC, WEEE

Key Features:
– High-performance external rotor motor design
– Compact and robust construction
– Energy-efficient operation
– Low noise emission
– Easy to install with terminal box for electrical connection
– Maintenance-free ball bearings for long service life
– Integrated thermal overload protection for motor safety
– Suitable for continuous operation (S1)
– Can be controlled via analog or PWM input
– Aerodynamically optimized blade design for high airflow and pressure stability

Models Suitability:
– Suitable for a wide range of cooling and ventilation applications including electronics cooling, heat exchangers, and HVAC systems.
– Ideal for use in industrial environments due to its robust construction and IP54 protection against dust and water splashes.
– Applicable in both commercial and residential settings where high air performance and low noise levels are required.
– Can be used in variable air volume (VAV) systems due to its controllability.
– Compatible with a variety of control systems for speed regulation, making it versatile for integration into different system designs.
