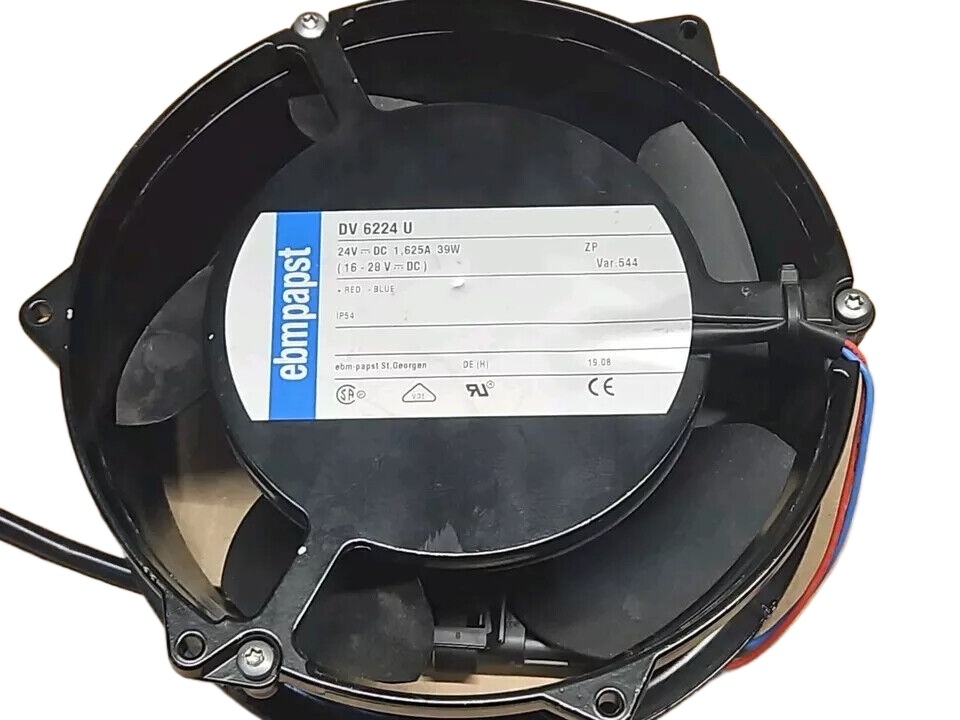

Ebm-papst DV6224U Axial Fan 172x51mm 24VDC High Performance Ball Bearing Robust Design

Product: Ebm-papst DV6224U Axial Fan 172x51mm 24VDC High Performance Ball Bearing Robust Design

Full Specifications:
– Dimensions: 172mm x 51mm
– Voltage: 24 VDC
– Bearing Type: Ball bearing
– Airflow: Max. 215 CFM (Cubic Feet per Minute)
– Speed: 4800 RPM (Revolutions Per Minute)
– Power Consumption: 18 W (Watts)
– Current Draw: 0.75 A (Amperes)
– Noise Level: 59 dB(A)
– Weight: 1.2 kg
– Material: Fiberglass-reinforced plastic; impeller and housing
– Connection: Stripped wires
– Protection Class: IP20
– Ambient Temperature Range: -20°C to +70°C
– Expected Life Span: 65,000 hours at 40°C

Key Features:
– High-performance ball bearings ensure long service life and reliability
– Robust design suitable for demanding applications
– High airflow and static pressure capabilities for effective cooling
– Efficient energy consumption for sustainable operation
– Low noise emission for use in noise-sensitive environments
– Speed signal for monitoring and control purposes
– Easy to install with stripped wire leads
– Resistant to harsh environmental conditions due to rugged construction
– Maintenance-free operation due to high-quality components

Models Suitability:
– Industrial automation and machinery cooling
– Telecommunications equipment
– Data center and server rack cooling
– Automotive applications including engine and brake cooling
– HVAC systems requiring high airflow
– Electronic cabinet cooling
– Renewable energy systems such as solar inverters and wind turbines
– Medical equipment requiring reliable thermal management
– Transportation systems including rail and avionics cooling
