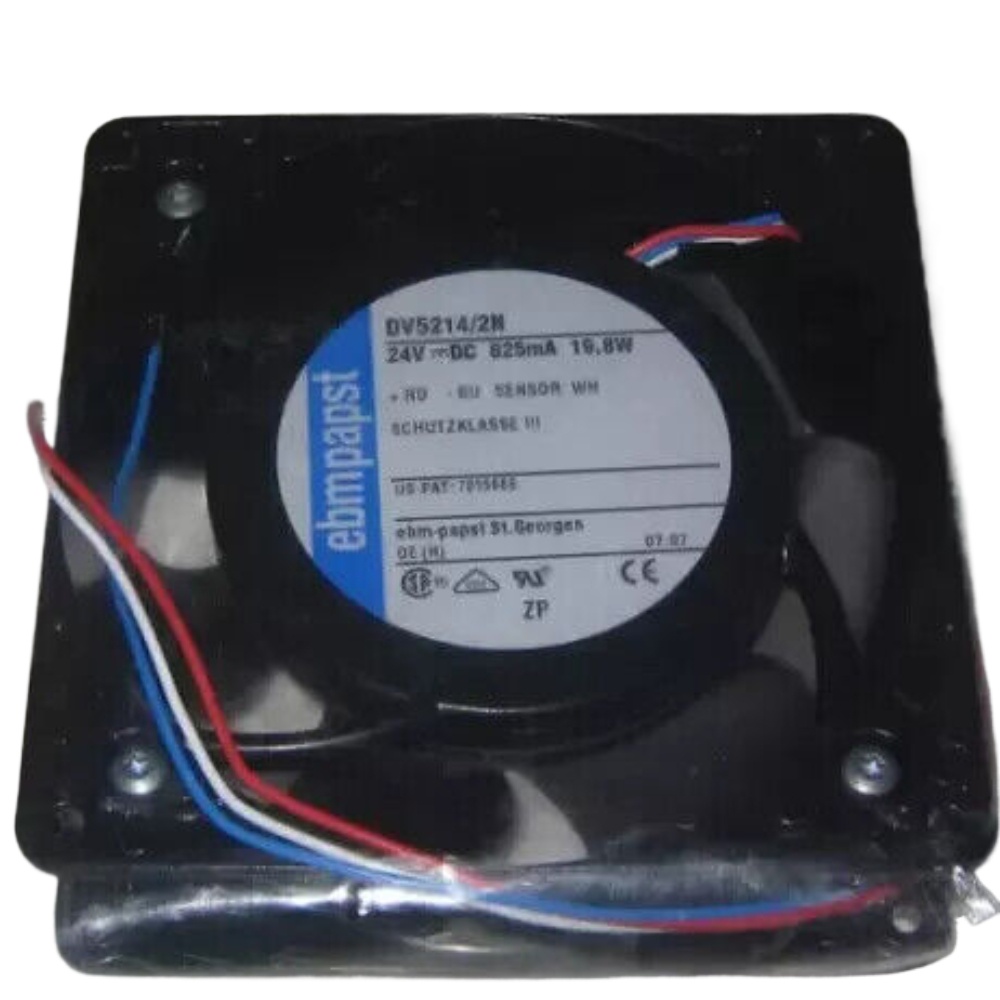

Ebm-papst DV5214/2N Axial Fan 127x127x38mm 24VDC 215CFM Ball Bearing High Performance

Product: Ebm-papst DV5214/2N Axial Fan 127x127x38mm 24VDC 215CFM Ball Bearing High Performance

Full Specifications:
– Dimensions: 127 x 127 x 38 mm
– Voltage: 24 VDC
– Airflow: 215 cubic feet per minute (CFM)
– Bearing Type: Ball bearing
– Fan Speed: 2800 RPM (Revolutions per Minute)
– Noise Level: 45 dB(A)
– Power Consumption: 18 W
– Current Draw: 0.75 A
– Weight: 0.5 kg
– Material: Fiberglass-reinforced plastic; impeller and frame
– Connection: Stripped wires
– Protection: Locked rotor protection and polarity protection
– Operational Temperature Range: -20°C to +70°C
– Expected Life: 65,000 hours at 40°C
– Compliance: RoHS, CE
– Control Input: Tachometer output

Key Features:
– High-performance motor designed for extended use
– Robust ball bearing system for enhanced durability and longevity
– High airflow capacity suitable for demanding applications
– Efficient design with optimized blade geometry for superior air movement
– Low noise emission for use in noise-sensitive environments
– Energy-efficient operation with low power consumption
– Easy to install with stripped wire leads for power connection
– Equipped with electronic protection features to prevent damage from locked rotor situations
– Tachometer output for speed monitoring and control
– Resistant to harsh environmental conditions, ensuring reliability in a wide range of temperatures

Models Suitability:
The Ebm-papst DV5214/2N Axial Fan is suitable for a variety of applications that require efficient cooling and ventilation, including but not limited to:
– Telecommunication systems
– Industrial control cabinets
– Electronic equipment cooling
– Automotive industry applications
– HVAC systems
– Data center and server rack cooling
– Medical devices requiring thermal management
– Renewable energy systems such as inverters and converters
