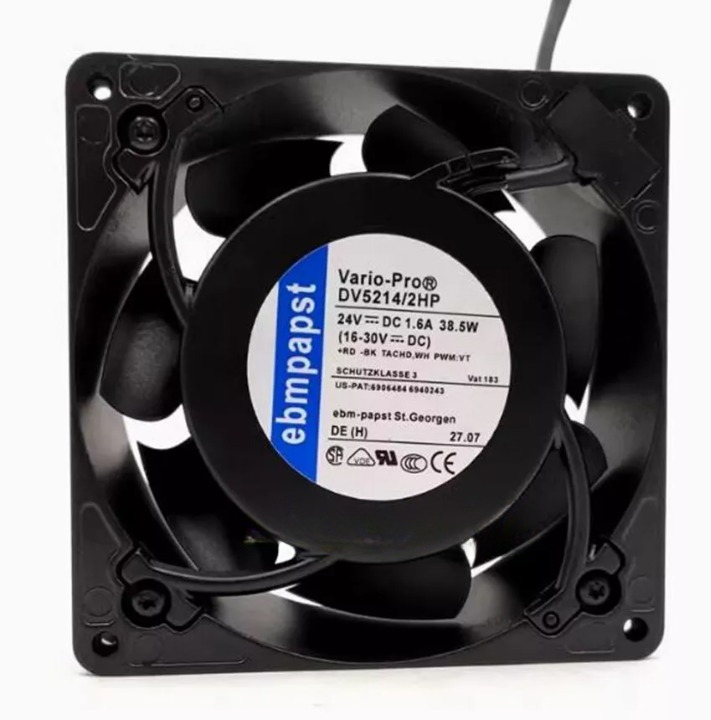

Ebm-papst DV5214/2HP Axial Fan 172x150x51mm 24VDC High Performance Ball Bearing
$57.00
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst DV5214/2HP Axial Fan 172x150x51mm 24VDC High Performance Ball Bearing
Full Specifications:
– Dimensions: 172mm x 150mm x 51mm
– Voltage: 24VDC
– Bearing Type: High-performance ball bearings
– Airflow: 252.85 CFM (Cubic Feet per Minute)
– Speed: 4500 RPM (Revolutions per Minute)
– Power Consumption: 48W
– Current Draw: 2A
– Noise Level: 59 dB(A)
– Weight: 1.2 kg
– Material: Fiberglass-reinforced plastic; impeller and housing
– Connection: Stripped wires
– Motor: Electronically commutated external rotor motor
– Protection Class: IP20
– Ambient Temperature Range: -20°C to +70°C
– Expected Life Span: 65,000 hours at 40°C
Key Features:
– Energy-efficient operation due to EC (Electronically Commutated) motor technology
– High airflow and static pressure performance
– Robust design with high-performance ball bearings for extended service life
– Speed-controllable via external control input
– Low noise emission for noise-sensitive environments
– Maintenance-free and compact design
– Equipped with overheat protection via PTC resistor
– Reverse polarity and locked-rotor protection
– Can be used in any mounting position
Models Suitability:
– Suitable for high-performance cooling applications in telecommunications, IT, and industrial systems
– Ideal for use in variable air volume systems and electronics cooling
– Applicable in automotive battery cooling systems
– Can be integrated into solar inverters, frequency converters, and energy storage systems
– Designed for demanding environments such as control cabinets, enclosures, and heat exchangers
– Compatible with applications requiring high reliability and long service life, such as medical devices and railway technology
