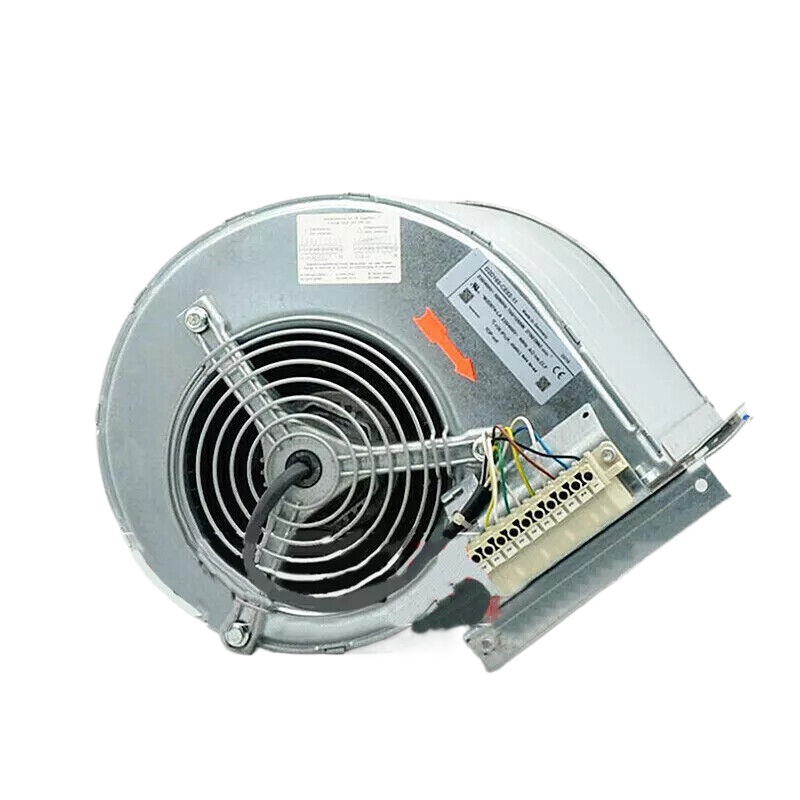

Ebm-papst D2D160-CE02-12 Centrifugal Fan 230VAC High Performance Dual Inlet
$628.62
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst D2D160-CE02-12 Centrifugal Fan 230VAC High Performance Dual Inlet
Full Specifications:
– Voltage: 230 VAC
– Frequency: 50/60 Hz
– Phase: Single-phase
– Current: 1.95 A
– Power Input: 448 W
– Speed: 2800 RPM (max)
– Airflow: 1050 m³/h (max)
– Fan Diameter: 160 mm
– Connection: Terminal box
– Capacitor: 4 µF
– Insulation Class: F
– Protection Class: IP54
– Sound Pressure Level: 69 dB(A)
– Weight: 5.5 kg
– Material: Housing made of galvanized steel; impeller made of plastic PA6.6
– Motor: External rotor shaded-pole motor
– Mounting Position: Any
– Direction of Airflow: “V” direction of rotation
– Direction of Rotation: Right, seen on rotor
– Mode of Operation: Continuous operation (S1)
– Bearing Type: Ball bearing
– Ambient Temperature Range: -20°C to +60°C
– Approval: VDE, CSA, UL, CE
– EMC Compliance: Emission – EN 61000-6-3; Immunity – EN 61000-6-2
Key Features:
– Dual inlet design for high airflow performance
– Compact and robust construction
– Energy-efficient operation with optimized aerodynamics
– Low noise emission due to aerodynamically shaped impeller blades
– Speed-controllable via external input
– Thermal overload protection embedded in motor winding
– Easy installation with terminal box for electrical connections
– Maintenance-free ball bearings for long service life
– Suitable for a wide range of operating temperatures
Models Suitability:
– HVAC systems (Heating, Ventilation, and Air Conditioning)
– Electronic cooling systems
– Clean room modules
– Heat recovery units
– Residential ventilation systems
– Commercial air curtain systems
– Industrial cooling and drying processes
– Air handling units for buildings and industrial applications
The Ebm-papst D2D160-CE02-12 Centrifugal Fan 230VAC High Performance Dual Inlet is engineered for reliability and efficiency, making it an ideal choice for applications requiring consistent and powerful air movement. Its dual inlet design allows for a significant volume of air to be moved effectively, while maintaining a compact footprint.
