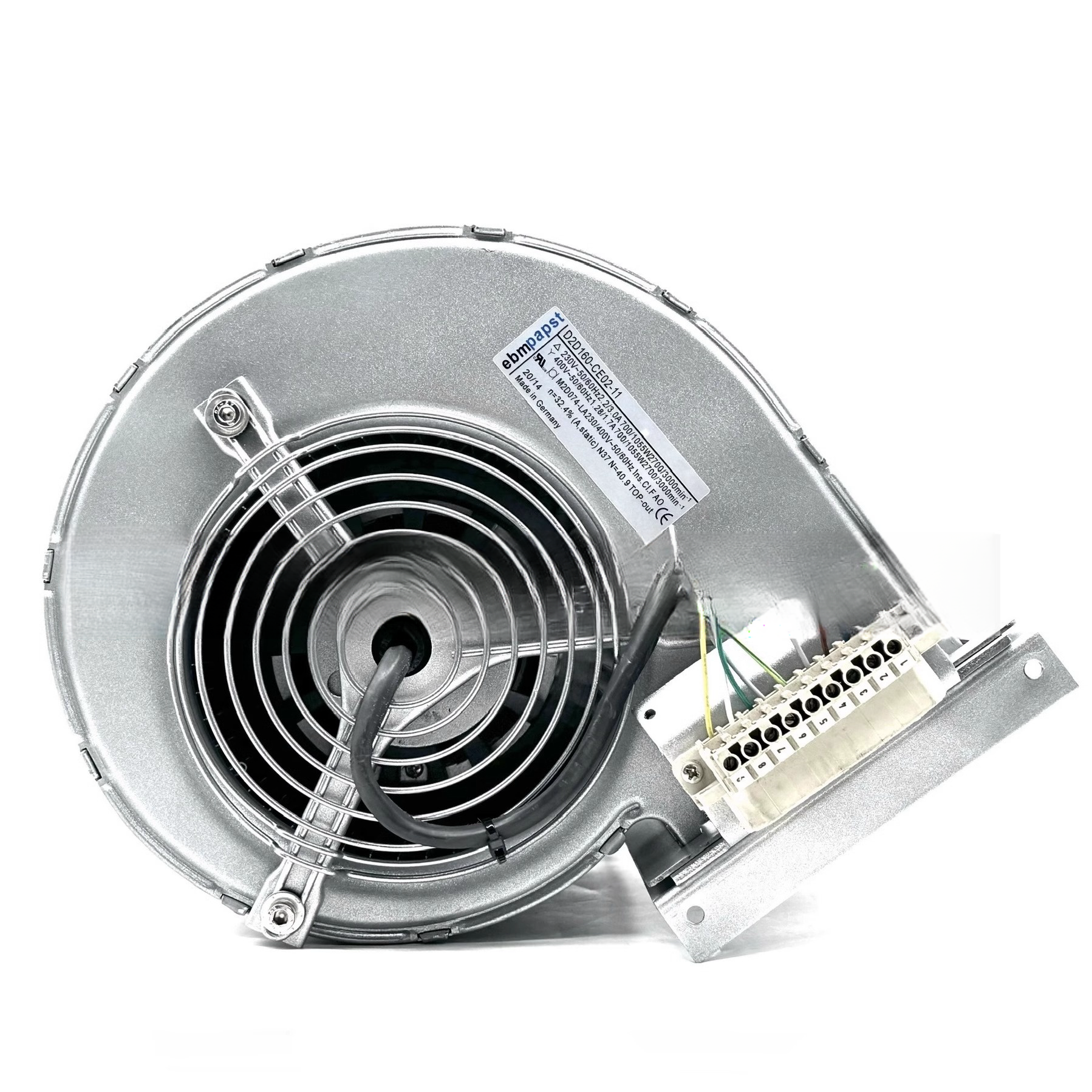

Ebm-papst D2D160-BE02-11 Centrifugal Fan 230VAC High Performance Dual Inlet

Product: Ebm-papst D2D160-BE02-11 Centrifugal Fan 230VAC High Performance Dual Inlet

Full Specifications:
– Voltage: 230 VAC
– Frequency: 50/60 Hz
– Phase: Single-phase
– Current: 1.95 A
– Power Input: 250 W
– Speed: 2550 RPM (max)
– Airflow: 1050 m³/h (max)
– Fan Diameter: 160 mm
– Connection: Terminal box with lead
– Sound Pressure Level: 65 dB(A)
– Weight: 4.5 kg
– Motor Type: EC (Electronically Commutated)
– Insulation Class: F
– Protection Class: IP44
– Ambient Temperature Range: -20°C to +60°C
– Material: Housing made of galvanized steel; impeller made of plastic PA6.6
– Mounting Position: Any
– Approval: CE, UL, CSA, EAC, CCC, RoHS

Key Features:
– Dual inlet design for high airflow performance
– EC motor technology for high efficiency and energy savings
– Compact size for easy integration into various applications
– Maintenance-free ball bearings for long service life
– Speed-controllable via analog or digital signal
– Integrated motor protection for enhanced safety
– Low noise emission for quiet operation
– Thermal overload protection embedded in the motor
– Advanced aerodynamic design for optimal air movement

Models Suitability:
The Ebm-papst D2D160-BE02-11 Centrifugal Fan is suitable for a wide range of applications, including but not limited to:
– Ventilation systems
– Air conditioning units
– Heat pumps
– Air purifiers and cleaners
– Industrial cooling systems
– Electronic cooling systems
– Data center cooling solutions
– Automotive and rail technology ventilation
– Medical equipment cooling
– Energy generation systems (e.g., fuel cells, inverters)

This fan is designed to meet the needs of applications requiring high airflow and pressure performance, with the added benefits of energy efficiency and low noise operation. Its robust construction and advanced motor technology make it a reliable choice for continuous operation in demanding environments.
