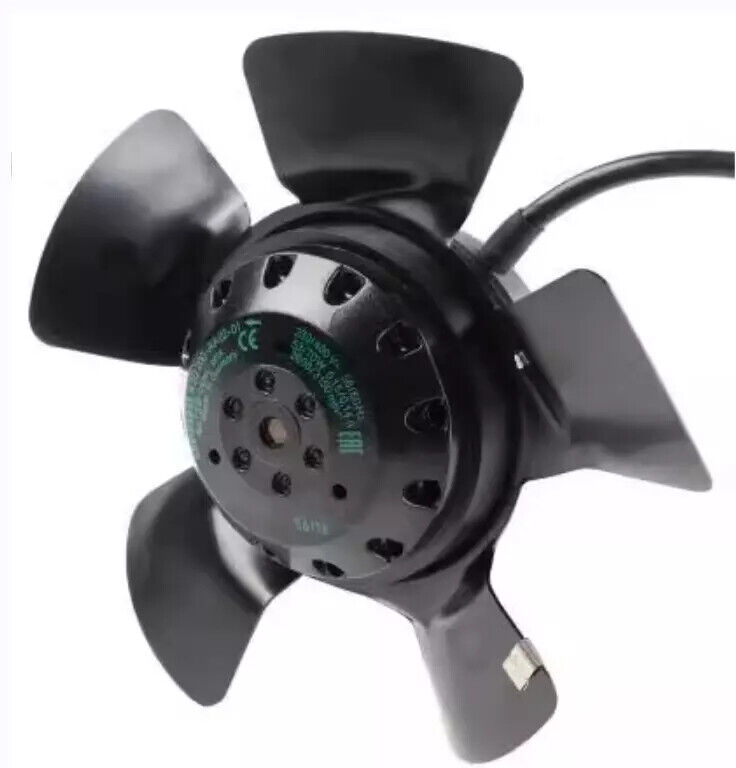

Ebm-papst A2E200-AF02-20 Axial Fan 200mm 230VAC High Performance Ball Bearing

Product: Ebm-papst A2E200-AF02-20 Axial Fan 200mm 230VAC High Performance Ball Bearing

Full Specifications:
– Nominal voltage: 230 VAC
– Frequency: 50/60 Hz
– Nominal speed: 2550/3100 min⁻¹
– Power input: 65/79 W
– Current draw: 0.28/0.34 A
– Max. back pressure: 120 Pa
– Airflow: 910/1100 m³/h
– Fan blade diameter: 200 mm
– Direction of rotation: Clockwise, seen on rotor
– Degree of protection: IP44
– Insulation class: F
– Connection: Terminal box 2 x PG 13.5
– Cable length: 500 mm
– Housing material: Die-cast aluminum
– Blade material: Sheet steel, coated
– Motor protection: Thermal overload protector (TOP) wired internally
– Mounting position: Any
– Condensate discharges: None
– Mode of operation: Continuous operation (S1)
– Bearing type: Ball bearing
– Weight: 2.0 kg
– Sound pressure level (at 1 m): 65 dB(A)

Key Features:
– Energy-efficient, compact design for high performance
– Maintenance-free ball bearing system for long service life
– Robust and durable die-cast aluminum housing
– High airflow and static pressure capabilities
– Low noise emission for quiet operation
– Thermal overload protection for safety and longevity
– Versatile mounting options for flexible installation
– Suitable for a wide range of ambient temperatures
– Easy to connect with terminal box for quick setup
– Compliant with relevant international standards (e.g., UL, CSA, CE)

Models Suitability:
– Suitable for a variety of industrial applications including ventilation, air-conditioning, and refrigeration systems.
– Ideal for use in electronic cabinet cooling, heat exchangers, and machinery cooling processes.
– Can be integrated into OEM equipment such as wind turbines, automotive cooling systems, and agricultural machinery.
– Appropriate for retrofitting in existing systems requiring a high-performance axial fan upgrade.
– Compatible with variable frequency drives (VFDs) for speed control in response to system demand.
