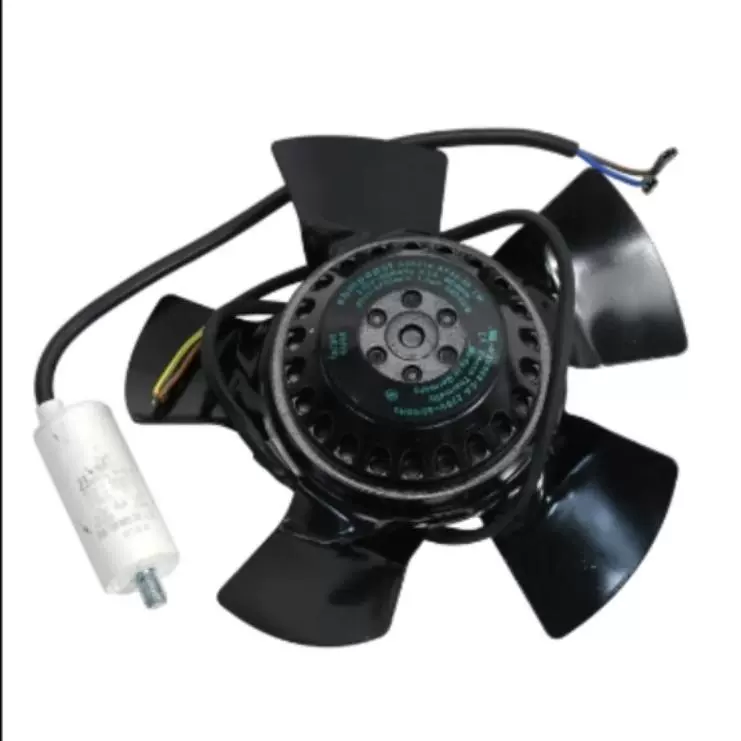

Ebm-papst A2E200-AF02-15 Axial Fan 200mm 230VAC High Performance Long Life

Product: Ebm-papst A2E200-AF02-15 Axial Fan 200mm 230VAC High Performance Long Life

Full Specifications:
– Nominal Voltage: 230 VAC
– Frequency: 50/60 Hz
– Nominal Speed: 2550/3100 min⁻¹
– Power Input: 65/79 W
– Current Draw: 0.28/0.34 A
– Max Back Pressure: 120 Pa
– Air Flow: 910 m³/h
– Fan Diameter: 200 mm
– Direction of Rotation: Clockwise, seen on rotor
– Degree of Protection: IP44
– Insulation Class: F
– Connection: Terminal box, 2 poles
– Cable Length: Approx. 500 mm
– Housing Material: Die-cast aluminum
– Blade Material: Sheet steel, coated
– Motor Protection: Thermal overload protector (TOP) connected to internal winding
– Ambient Temperature Range: -25°C to +70°C
– Weight: 2.0 kg
– Sound Pressure Level (at 1m): 65 dB(A)
– Life Expectancy: L10 life of 65,000 h at 40°C

Key Features:
– Sickle-shaped blades for enhanced airflow and reduced noise
– Maintenance-free ball bearings for long service life
– Energy-efficient motor design for reduced energy consumption
– Compact and robust construction for versatile use in various applications
– Integrated thermal overload protection for increased reliability and safety
– Compliant with ErP Directive for environmental sustainability
– Easy to install with terminal box for quick electrical connection

Models Suitability:
The Ebm-papst A2E200-AF02-15 Axial Fan is suitable for a wide range of applications where high-performance and long-life cooling is required. These include but are not limited to:
– Ventilation systems
– Heat exchangers
– Air conditioning units
– Refrigeration systems
– Electronic cabinet cooling
– Industrial machinery cooling
– Wind turbines
– Automotive applications

This fan is designed to meet the rigorous demands of continuous operation in industrial and commercial environments, ensuring optimal performance and reliability for critical cooling and ventilation tasks.
