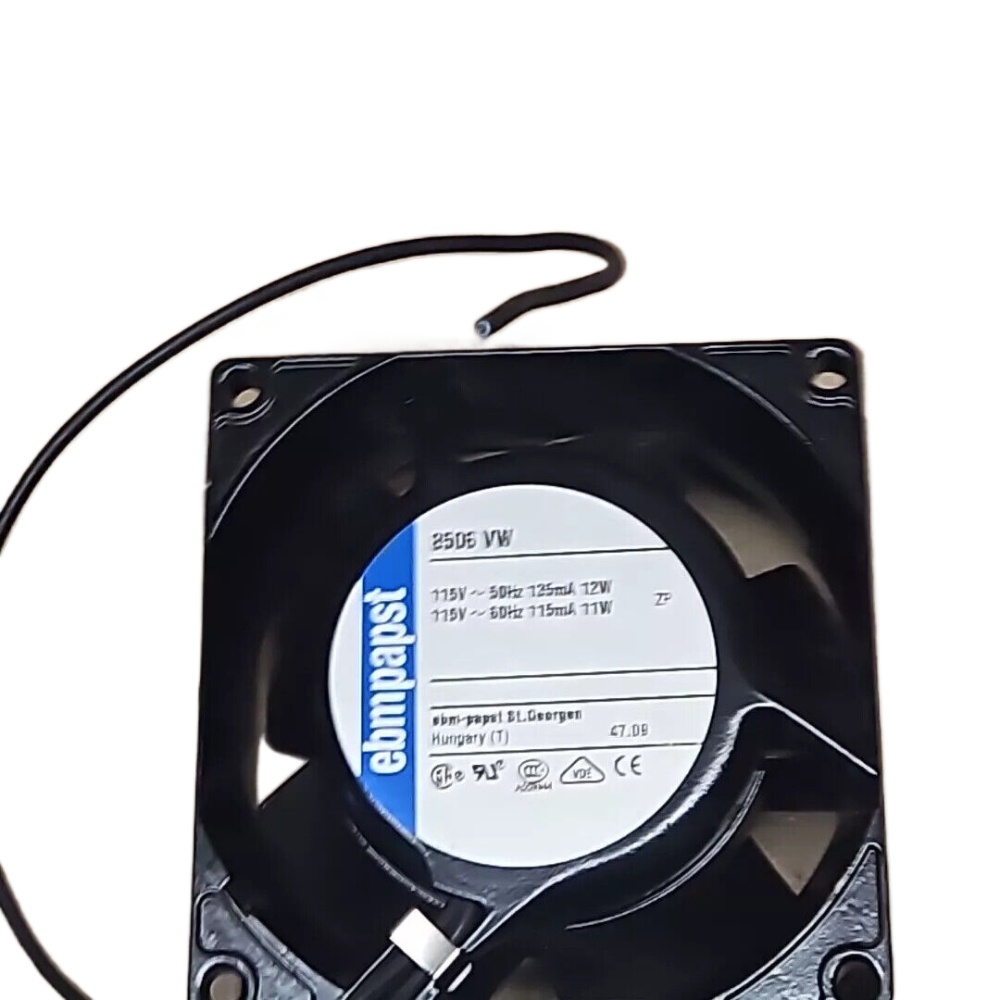

Ebm-papst 8506VW Axial Fan 80x80x38mm 115VAC 50/60Hz 23W High Performance

Product: Ebm-papst 8506VW Axial Fan 80x80x38mm 115VAC 50/60Hz 23W High Performance

Full Specifications:
– Dimensions: 80mm x 80mm x 38mm
– Voltage: 115 VAC
– Frequency: 50/60 Hz
– Power Consumption: 23 Watts
– Air Flow: 65 CFM (Cubic Feet per Minute)
– Speed: 2900 RPM (Revolutions per Minute) at 60Hz
– Noise Level: 40 dBA (Decibels)
– Bearing Type: Ball bearing
– Material: Fiberglass-reinforced plastic; impeller and housing
– Connection: Terminal pins
– Weight: 0.6 kg
– Protection Class: IP20
– Ambient Temperature Range: -20°C to +70°C
– Approval: UL, CSA, VDE, CE

Key Features:
– S-Force high-performance technology for demanding applications
– Compact and robust design for limited space installations
– Energy-efficient motor design reduces power consumption
– Low noise emission for noise-sensitive environments
– High airflow and static pressure performance
– Long service life due to high-quality ball bearings
– Easy to install with terminal pin connections
– Resistant to harsh environmental conditions
– Compliant with international safety standards

Models Suitability:
– Industrial cooling systems
– Telecommunications equipment
– Data center cooling
– Electronic cabinet cooling
– Medical devices
– HVAC systems
– Automotive applications
– Welding machines
– Control cabinet cooling

The Ebm-papst 8506VW Axial Fan is engineered for applications requiring robust and reliable cooling solutions. Its high-performance design is suitable for a wide range of industrial and commercial applications where efficient thermal management is critical. The fan’s compatibility with various voltages and its compliance with multiple safety standards make it a versatile choice for global use.
