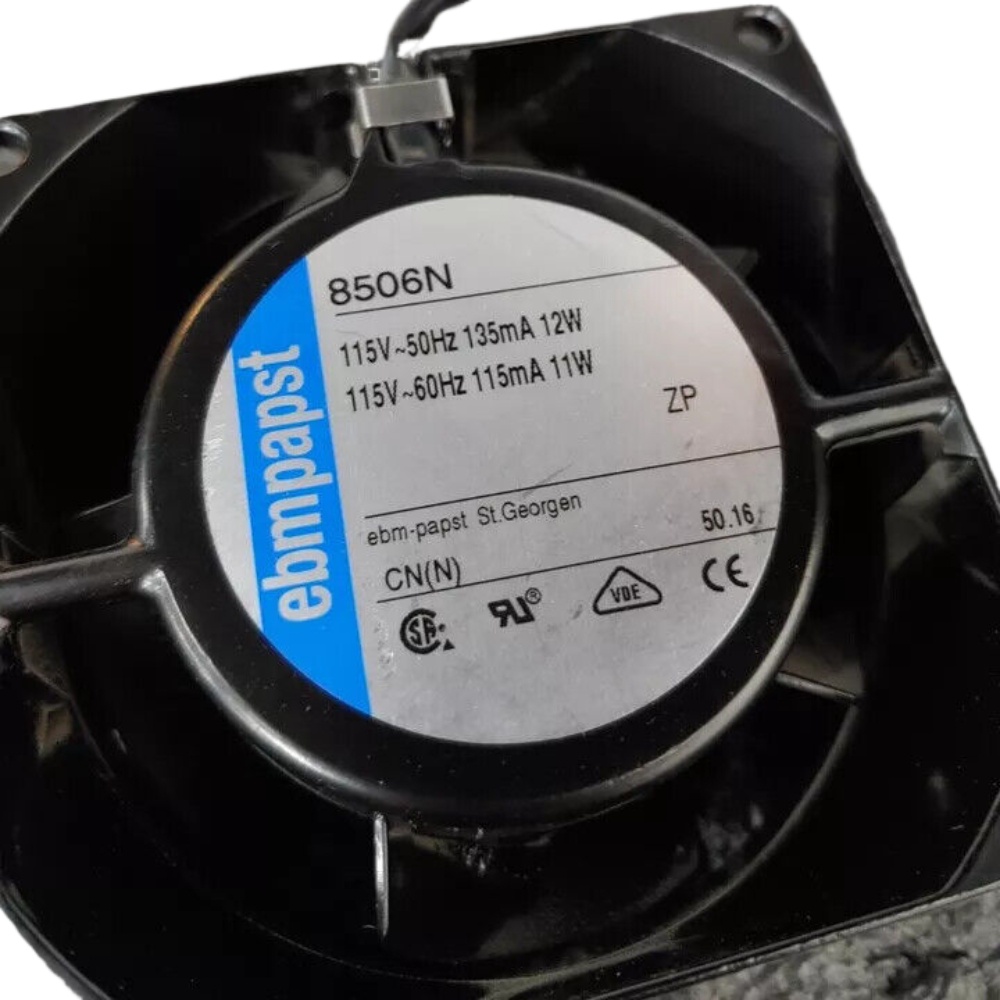

Ebm-papst 8506N Axial Cooling Fan 80x80x38mm 115VAC 50/60Hz 47CFM Sleeve Bearing

Product: Ebm-papst 8506N Axial Cooling Fan 80x80x38mm 115VAC 50/60Hz 47CFM Sleeve Bearing

Full Specifications:
– Dimensions: 80mm x 80mm x 38mm
– Voltage: 115 VAC
– Frequency: 50/60 Hz
– Airflow: 47 cubic feet per minute (CFM)
– Bearing Type: Sleeve Bearing
– Power Connection: Terminal
– Current: 0.14 A
– Power Consumption: 16 W
– Speed: 2650 RPM (at 60Hz), 2200 RPM (at 50Hz)
– Noise Level: 35 dB(A)
– Weight: 0.6 lbs (270 g)
– Material: Fiberglass-reinforced plastic; impeller PA, housing PBT
– Dielectric Strength: 1500VAC for 1 min
– Insulation Resistance: > 100 MΩ at 500 VDC between lead wire and frame
– Operating Temperature: -20°C to +70°C
– Protection Class: IP20
– Safety Approvals: UL, CSA, VDE, CE
– Life Expectancy: L10 life of 55000 hours at 40°C

Key Features:
– High-performance sleeve bearing system for extended operation
– Robust and durable construction with high-quality materials
– Efficient airflow and cooling performance with 47 CFM output
– Low noise emission for quiet operation
– Reliable operation across a wide temperature range
– Easy to install with terminal power connection
– Compliant with multiple international safety standards
– Suitable for continuous operation

Models Suitability:
– Industrial control cabinets
– Telecommunication equipment
– HVAC systems
– Electronic systems
– Data center cooling
– Automotive applications
– Medical devices
– Refrigeration systems
– Welding machines

The Ebm-papst 8506N Axial Cooling Fan is designed for applications requiring reliable and efficient cooling. Its robust construction and high airflow output make it suitable for a wide range of industrial, commercial, and technological environments where consistent thermal management is critical.
