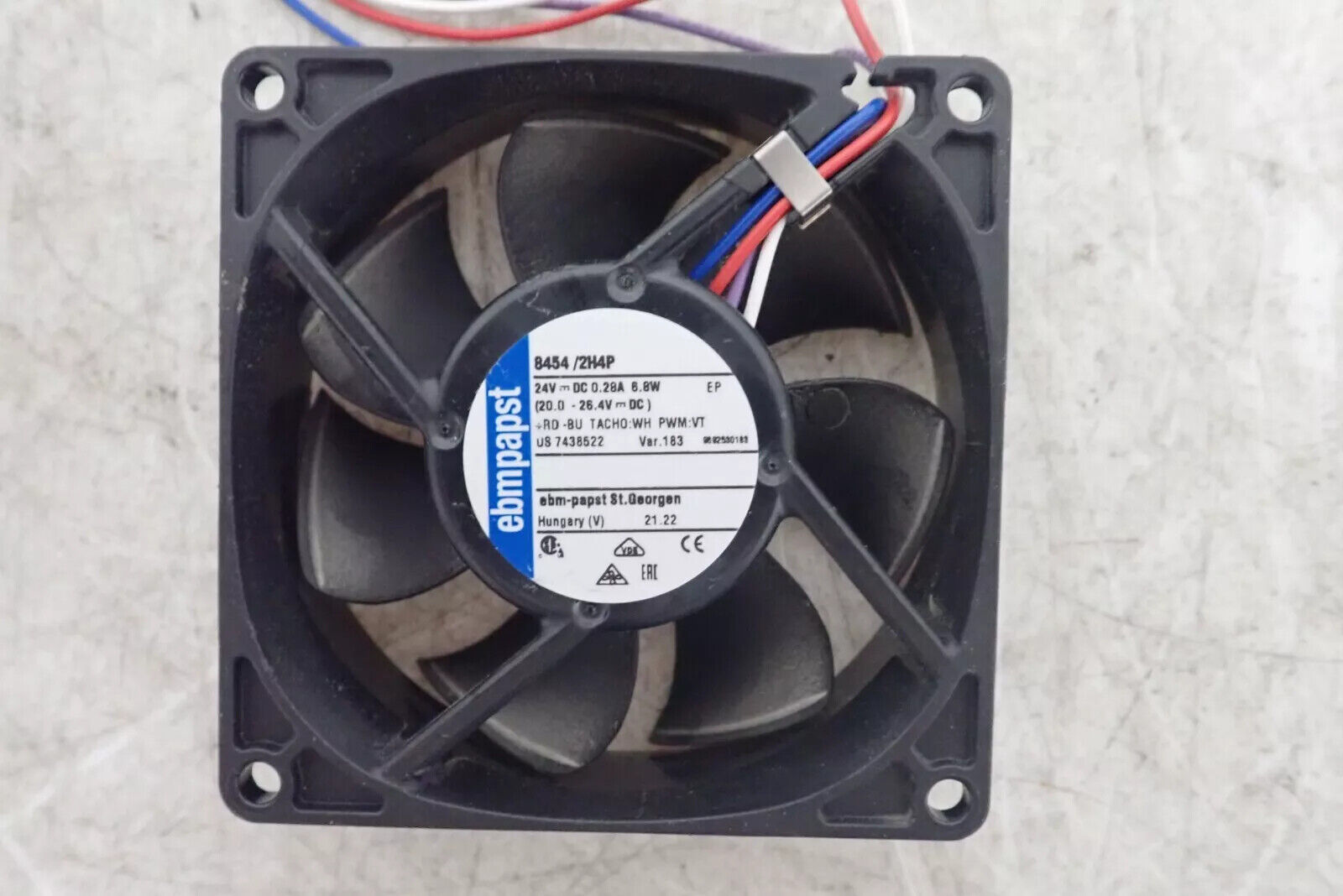

Ebm-papst 8454/2H4P Axial Fan 80x80x38mm 24VDC High Performance S-Force Series
$29.99
- Pricing: All prices are listed in U.S. dollars (USD).
- Secure Payments: We process payments securely through PayPal and Stripe.
- Free Shipping: Enjoy complimentary standard shipping within the United States (estimated delivery: 5–7 business days).
- International Shipping: For orders outside the U.S., please review our shipping policies for details.
Product: Ebm-papst 8454/2H4P Axial Fan 80x80x38mm 24VDC High Performance S-Force Series
Full Specifications:
– Dimensions: 80 x 80 x 38 mm
– Nominal Voltage: 24 VDC
– Product Range: S-Force Series
– Type of Bearing: Ball bearing
– Speed: 8500 RPM
– Air Flow: 69.5 CFM (117.7 m³/h)
– Noise Level: 59 dB(A)
– Power Consumption: 18 W
– Weight: 0.3 kg
– Material: Fiberglass-reinforced plastic; impeller PA, housing PBT
– Motor Protection: Locked rotor protection through impedance protection
– Connection: Stripped wires
– Direction of Rotation: Clockwise, viewed toward rotor
– Degree of Protection: IP20
– Approval: VDE, CSA, UL, CE
– Ambient Temperature Range: -20°C to +70°C
Key Features:
– S-Force high-performance technology for exceptional airflow and pressure
– Compact and robust design for space-constrained applications
– Energy-efficient operation with optimized aerodynamic design
– Advanced ball bearing system for long service life and reliability
– Low noise emission despite high-performance operation
– Easy to install with stripped wire leads for power connection
– Locked rotor protection to prevent motor damage
– Suitable for operation in harsh environmental conditions within specified temperature range
– Compliant with international standards and certifications for safety and performance
Models Suitability:
The Ebm-papst 8454/2H4P Axial Fan is suitable for a wide range of applications that require high airflow and pressure, including but not limited to:
– Telecommunications equipment
– Industrial automation and control cabinets
– Data center cooling systems
– Medical devices
– Automotive applications
– High-performance computing and servers
– Ventilation and air conditioning systems
– Electronic cooling in high-density configurations
